Stepper Motor Driver Expansion Board DRV8825/A4988
Stepper motor driver for precise motion control
৳200.00
Description of Stepper Motor Driver Expansion Board DRV8825 A4988
Stepper Motor Driver Expansion Board DRV8825 A4988
Engineered for precision and adaptability, the Stepper Motor Driver Expansion Board redefines stepper motor control with its compatibility with both DRV8825 and A4988 drivers. Designed specifically for 42-sized stepper motors, it shines in applications like 3D printing, CNC machining, and innovative DIY electronics. Its intuitive configuration and dependable performance make it a standout choice for creators and professionals alike.
Key Features
Compatibility: Supports both DRV8825 and A4988 stepper motor drivers.
Adjustable Drive Segments: Equipped with onboard DIP switches for easy drive segment configuration.
Wide Voltage Range: Operates with an input voltage range of 12V to 30V.
Logic Voltage: Supports 5V logic signals for compatibility with microcontrollers like Arduino and Raspberry Pi.

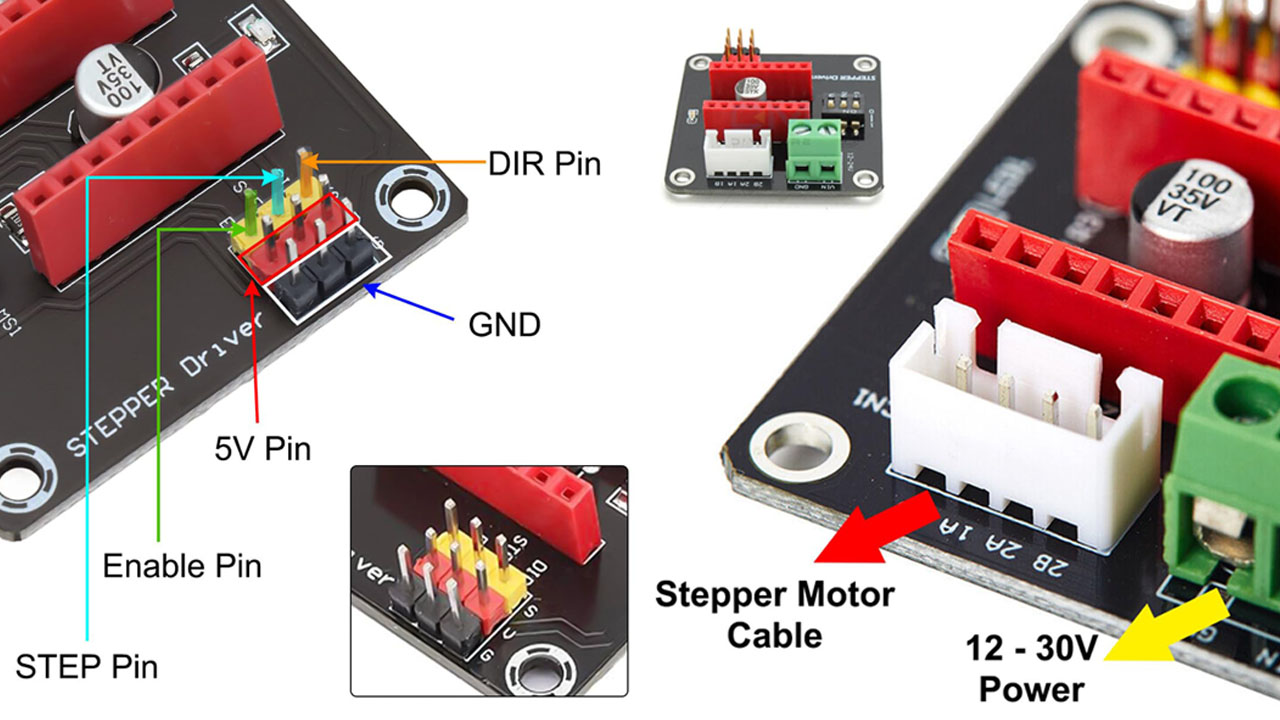

User-Friendly Interface: Features direction, enable, and speed control pins for flexible integration.
Sturdy Power Connector: Terminal block for stable and secure power input connections.
Technical Specifications
Feature | Specification |
|---|---|
Input Voltage | 12V – 30V |
Logic Voltage | 5V |

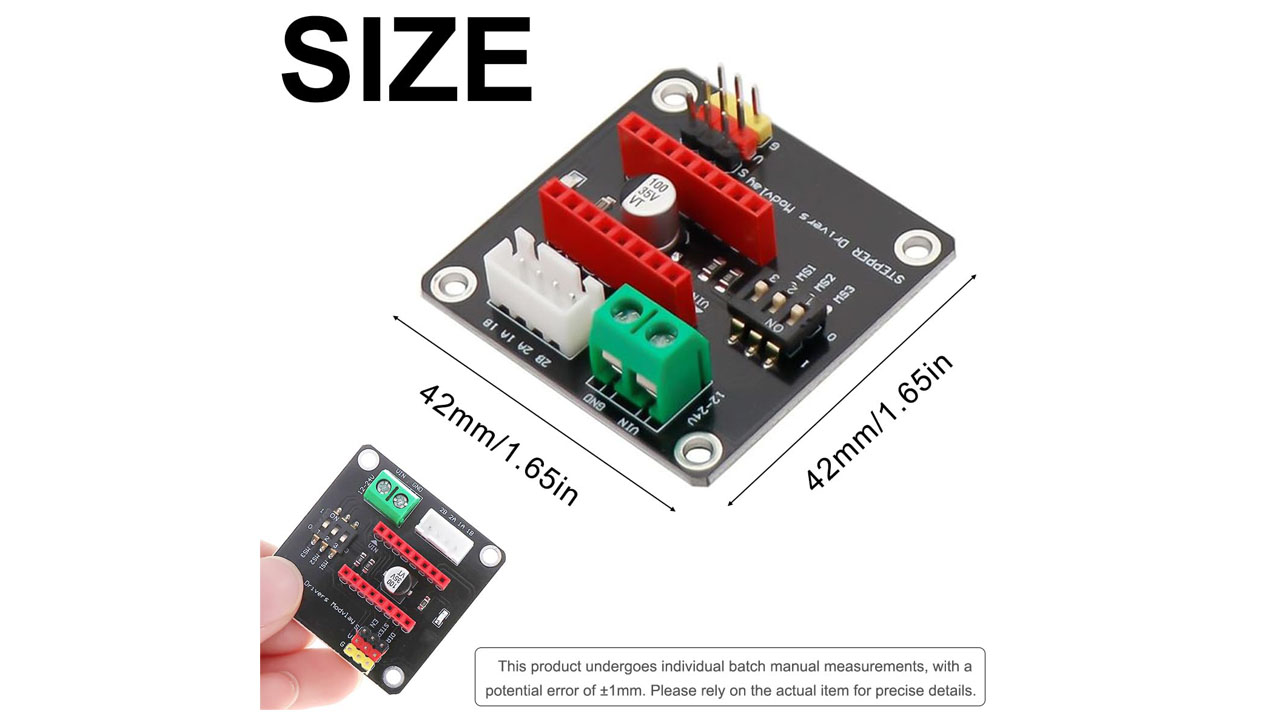

Board Dimensions | 42mm x 42mm x 15mm |
Mounting Hole Size | 3mm |
Hole Pitch | 35.56mm x 35.56mm (1400 mils) |
Applications
3D Printers: Accurate and smooth stepper motor control for extrusion and bed movement.
CNC Machines: Precise axis movement for engraving and cutting.
Robotics: Enhanced motion control for robotic arms and mobile platforms.
DIY Projects: Suitable for hobbyists and developers working on motorized systems.
Installation Guide
Driver Module Installation: Ensure the correct orientation of the DRV8825 or A4988 module before inserting it into the board. Incorrect placement may damage the module.
Power Connection: Connect the power supply to the terminal block, ensuring the voltage is within the specified range.
Microcontroller Connection: Attach the direction, enable, and speed control pins to your microcontroller.

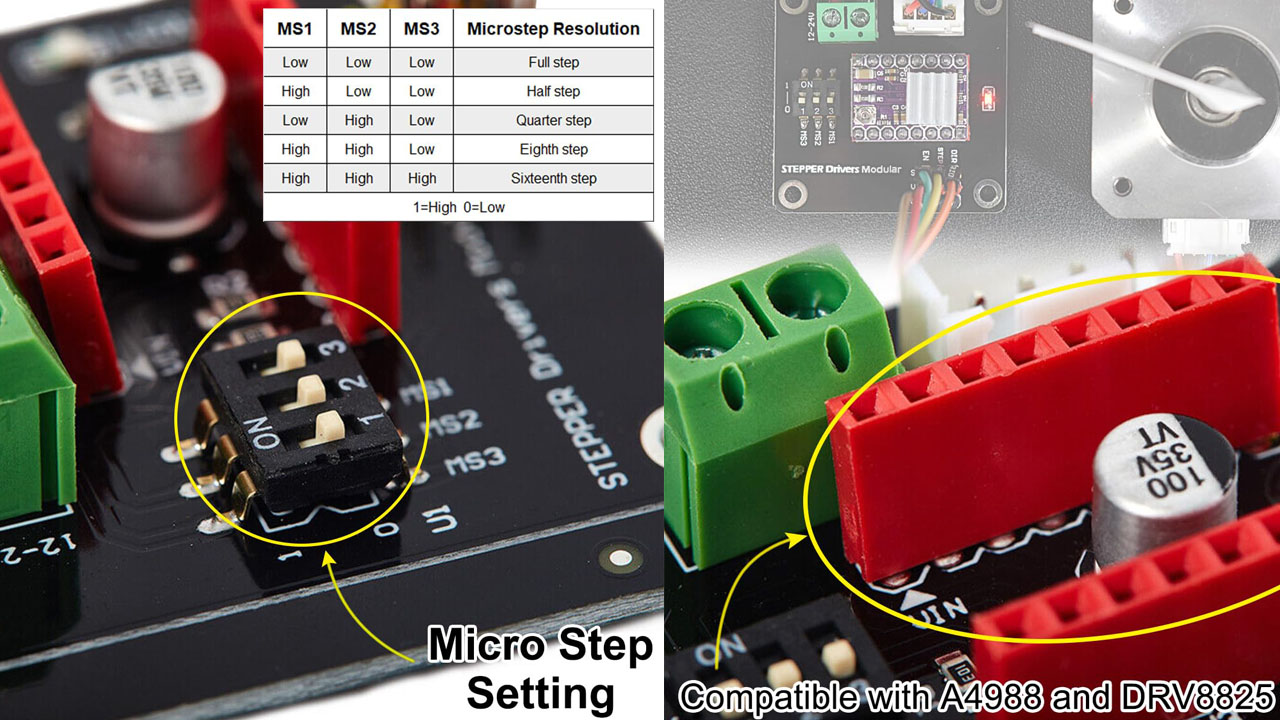

DIP Switch Configuration: Use the DIP switches to set the desired micro-stepping mode.
Testing: Power on the system and test the motor operation for smooth and precise movements.
Package Includes
1 x Stepper Motor Driver Expansion Board DRV8825 A4988
Precautions
Always double-check the orientation of the driver module before installation.
Ensure the power supply voltage does not exceed the recommended range.
Handle the board carefully to avoid physical damage or static discharge.
Why Choose This Board?
This Stepper Motor Driver Expansion Board offers a reliable and cost-effective solution for managing stepper motors in various projects. Its robust compatibility with DRV8825 and A4988 drivers, combined with its easy-to-use features, makes it an excellent choice for both beginners and professionals.
