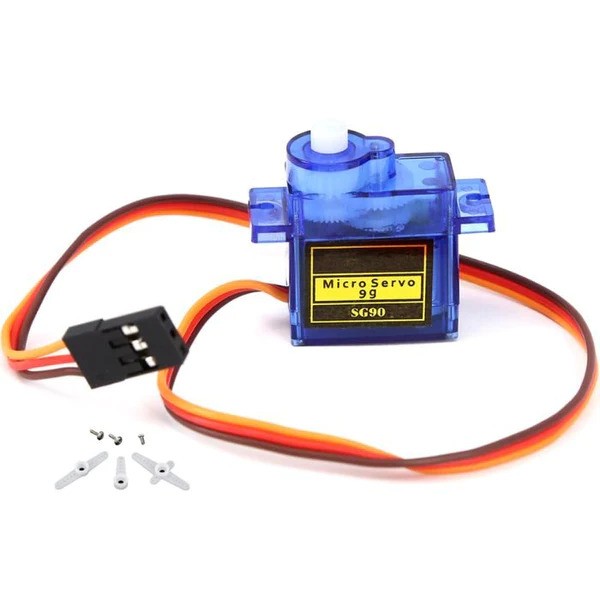

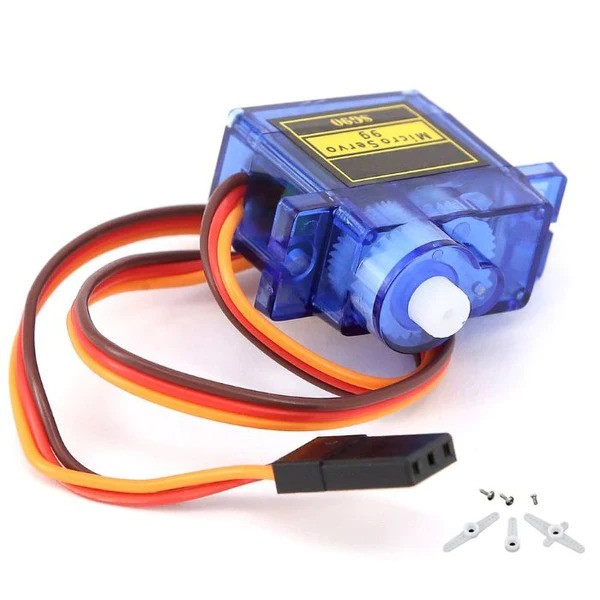

SG90 Mini Servo Motor
Micro 9g Servo for RC Models
৳150.00৳130.00
Description of Servo Motor SG90
The Servo Motor SG90 is a tiny, lightweight, and high-performance servo motor ideal for small robotics and RC projects. It offers precise rotation of approximately 180° (90° in each direction) and works just like standard servos, but in a smaller size. Compatible with various servo libraries and controllers, this motor is perfect for beginners and makers who want smooth motion without building complex motor driver circuits. It comes with three servo horns (arms) and necessary mounting hardware.
Key Features
Provides 180° rotation (90° each side).
Compatible with most Arduino and robotics platforms.
Comes with 3 servo horns and installation hardware.
Specifications
Parameter | Details |
|---|---|
Model | SG90 |
Weight | 9 g |
Dimensions | 23 × 12.2 × 29 mm |
Stall Torque | 22.2 oz/in (1.6 kg·cm) |
Operating Speed (4.8V no load) | 0.12 sec / 60° |
Operating Voltage | 4.2 – 6V |
Temperature Range | 0℃ – 55℃ |
Dead Band Width | 10 μs |
Applications
Robotics and automation projects
RC vehicles (cars, planes, boats, etc.)
Arduino-based motion control systems
Pan-tilt camera or sensor mounts
Packaging Details
1 × SG90 Servo Motor
3 × Servo Horns (Arms)
