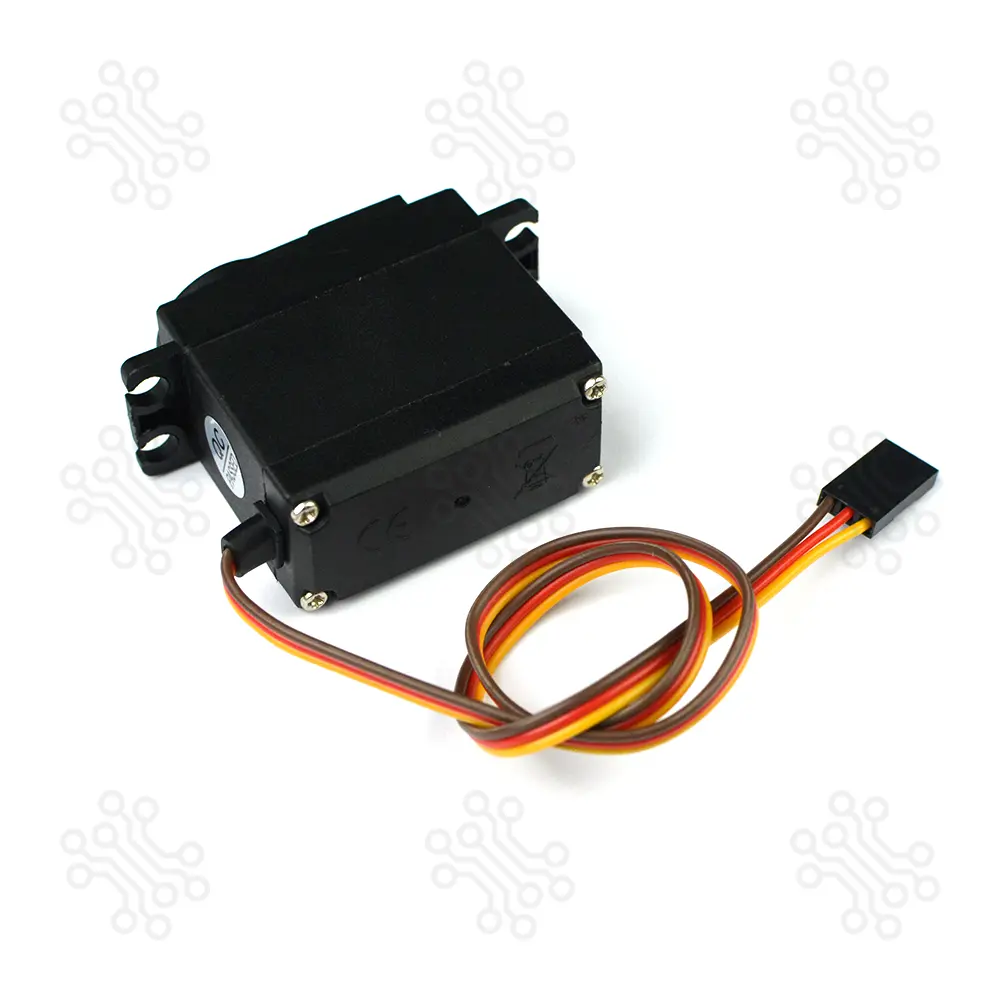

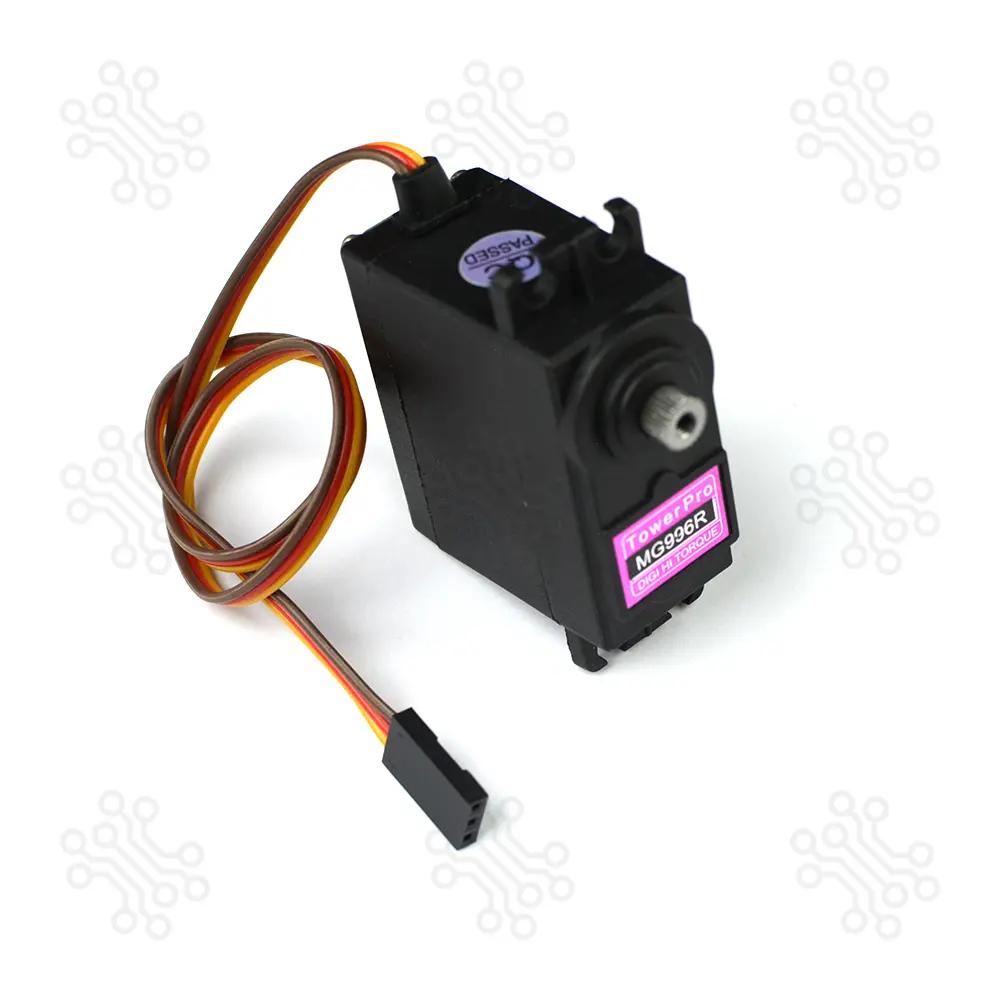

Servo Motor MG996R
Precision Motion Control for Robotics & DIY
৳450.00৳390.00
Description of Servo Motor MG996R
The MG996R is a high-performance digital servo motor designed for applications requiring high torque, precision, and durability. As the successor to the MG995, this model features a redesigned PCB and IC control system, offering significantly improved accuracy, "dead bandwidth" performance, and precise centering.
Engineered for versatility, this motor supports a full 180-degree rotation, providing a wide range of motion for complex movements. Its robust metal gearing and dual ball-bearing design ensure maximum strength and longevity, making it an ideal choice for robotics, RC vehicles, and industrial prototyping.
Features
The redesigned control system provides enhanced precision by ensuring superior shock-proofing and consistent positional accuracy during operation.
Universal plug-and-play compatibility is achieved through a 30cm 'S' type header that fits major receivers like Futaba, JR, and Spektrum.
The ease of integration allows users to control the unit with standard libraries, removing the need for custom motor controllers or feedback loops.
Specification
Feature | Specification |
|---|---|
Operating Voltage | 4.8 V to 7.2 V |
Stall Torque (4.8V) | 9.4 kg-cm |
Stall Torque (6.0V) | 11 kg-cm |
Operating Speed (4.8V) | 0.255 sec / 90° (no load) |
Operating Speed (6.0V) | 0.195 sec / 90° (no load) |
Gear Type | Metal & Plastic Gears |
Bearing Type | Double Ball Bearing |
Dead Band Width | 5 μs |
Operating Current (Idle) | 500 mA – 900 mA (at 6V) |
Stall Current | 2.5 A (at 6V) |
Rotation Angle | 180° |
Connector Wire | Heavy Duty, 11.81" (300 mm) |
Weight | 55 g |
Dimensions | 40.7 × 19.7 × 42.9 mm |
Temperature Range | 0 °C to 55 °C |
Pin Configuration
The MG996R utilizes a standard 3-wire interface for power and control:
Brown: Ground (GND)
Red: Positive Power (VCC)
Orange: PWM Signal
Application
Robotic arms and grippers
RC car steering and aircraft flaps
Automated locks and valves
Camera pan-tilt platforms
Animatronic props and puppets
Documents

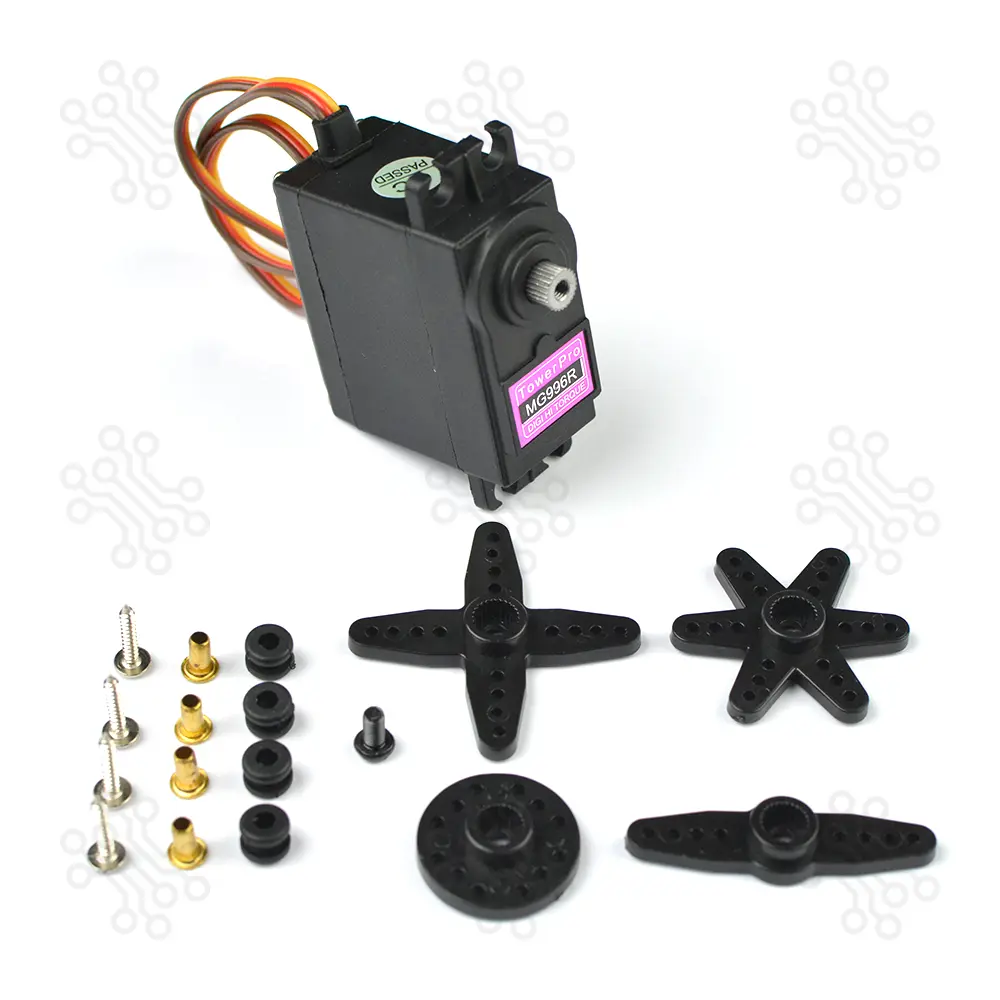

Packaging Details
1 × Servo Motor MG996R

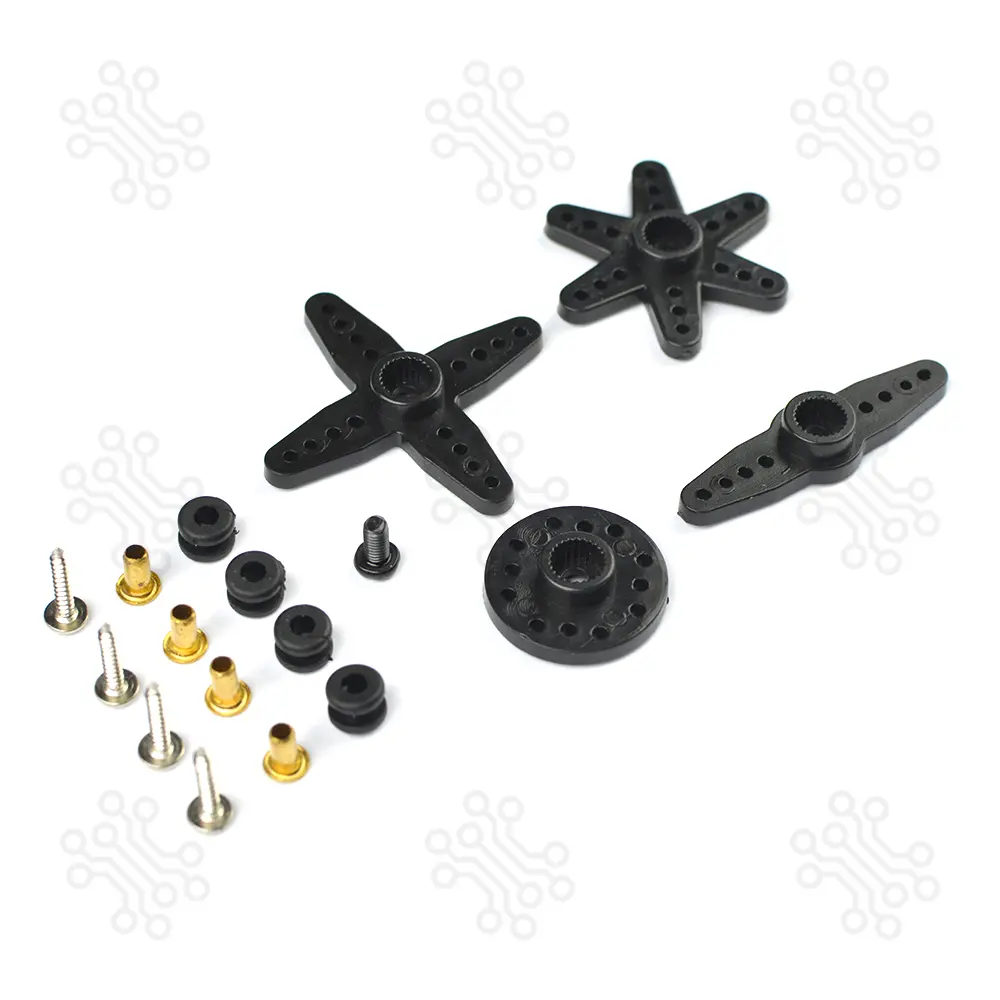

4 × Servo Horns (different types)
Mounting Screws and Accessories
