Servo Motor Accessories Kit

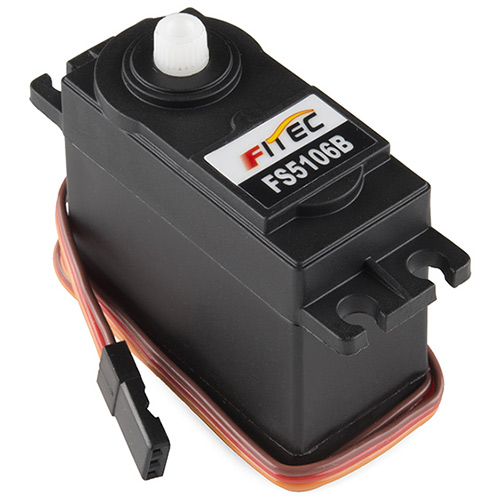

Description of Servo Generic High Torque Standard Size

Here is a powerful, low-cost, reliable servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque at 0.16 sec/60°

This is a tough little servo with a standard 3 pin power and control cable, and all hardware listed below.

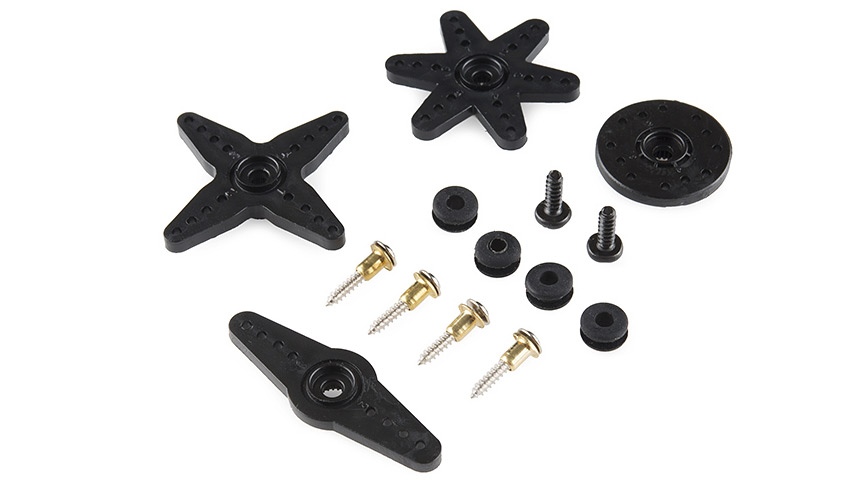

• 1x FS5106B High Torque Servo

• 1x Double Arm Horn

• 1x Circle Horn

• 1x Four Point Horn

• 1x Six Point Horn

• 2x 3x10mm Phillips Screw

• 4x 2x13mm Mounting Phillips Screw

• 4x Rubber Grommets

• 4x Brass Eyelets

Please visit this page to know more about this product.

Specification of Servo Generic High Torque Standard Size

• Voltage: 4.8-6.0 Volts

• Torque: 69.56/83.47 oz-in. (4.8/6.0V)

• Speed: 0.18/0.16 sec/60° (4.8/6.0V)

• Direction: Counterclockwise 1000-2000usec

• Rotation: 180°

• Dual Ball Bearing

• Nylon Gears

• 25T Spline (Futaba 3F)
