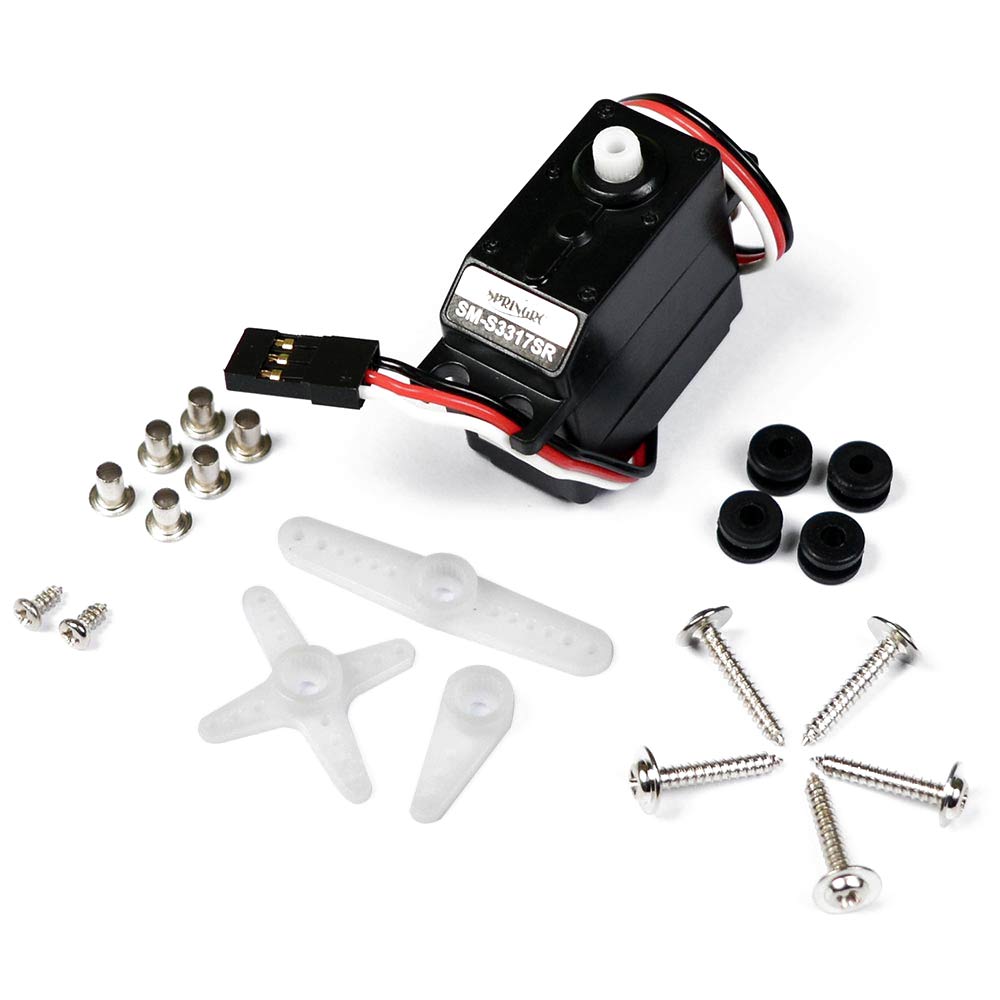

Servo Generic Continuous Rotation Micro Size

Description of Servo Generic Continuous Rotation Micro Size

This simple high quality continuous full-rotation servo motor is here, for all your mechatronic needs. This servo is able to take in 6 volts and deliver 30.6 oz-in. of maximum torque at 0.14 sec/60°.

Click here to know more about this product.

Specification of Servo Generic Continuous Rotation Micro Size

• Voltage: 4.8-6.0 Volts

• Torque: 27.8/30.6 oz-in. (4.8/6.0V)

• Speed: 0.16/0.14 sec/60° (4.8/6.0V)

• Rotation: 360°

• Dual Ball Bearing

• Plastic Gears

Dimensions:

• 31.3 x 16.3 x 28.5mm

• Wire Length: 160mm

• Weight: 18g

Documentation of Servo Generic Continuous Rotation Micro Size

• Dimensional Drawing

• Datasheet (SM-S3317S)
