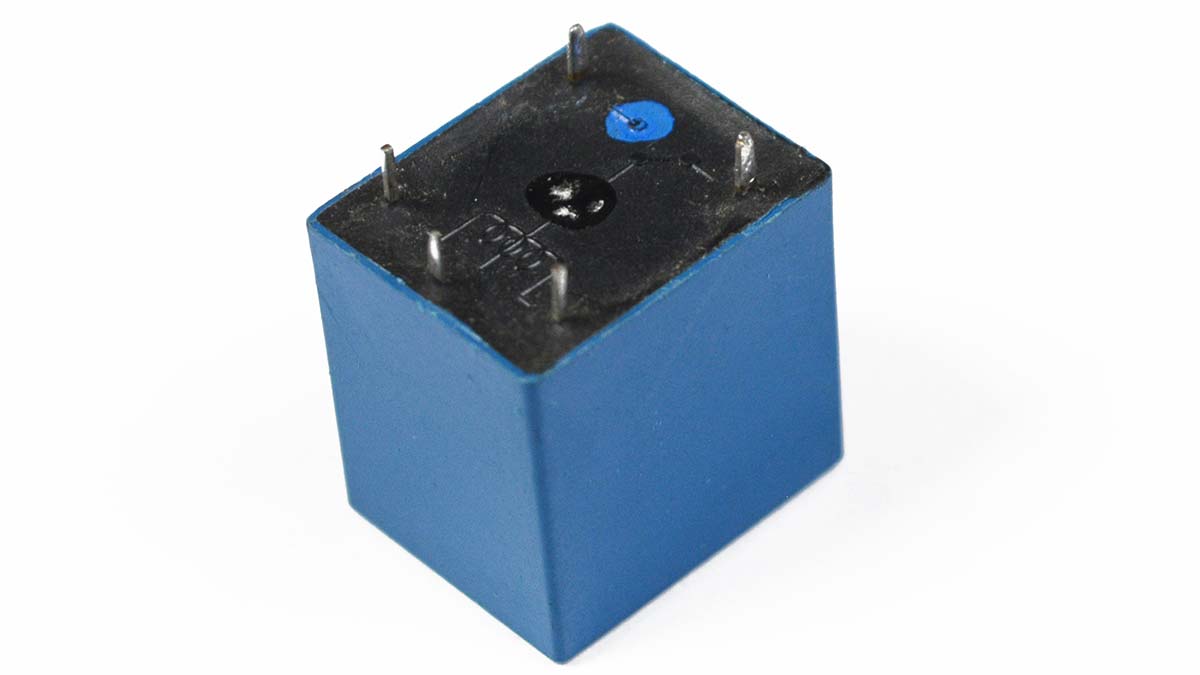

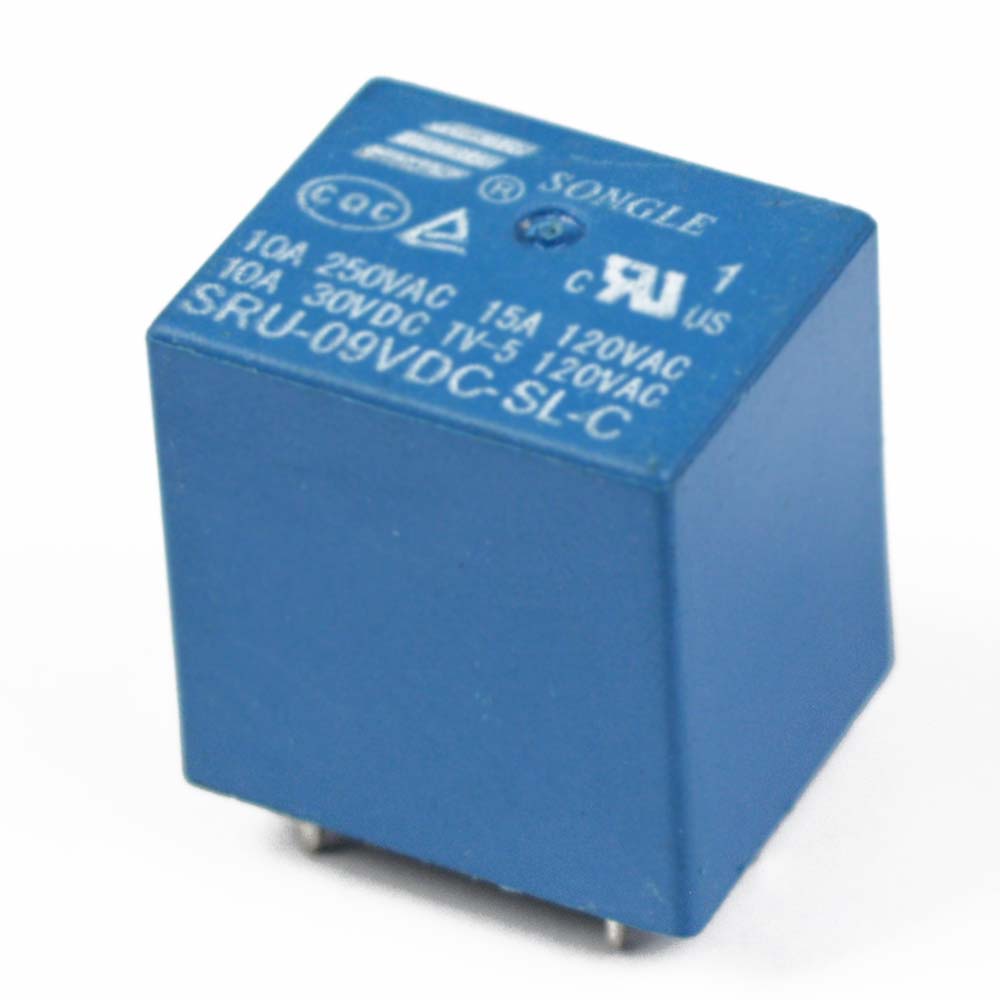

Relay SONGLE 9V 10A

Description of Relay SONGLE 9V 10A

This relay can be used to switch High power (whether AC or DC) to a load by driving the relay coil with a far much lower voltage and current. When Current flows through the relay coil, It makes or breaks its contacts through electromagnetic induction. A relay contacts comprises of the Normally-Open (NO) and Normally Closed (NC) contacts. These refer to the state of the relay contacts when the relay coil is not energized. When driving a relay coil from a digital output or transistor, always connect a diode in reverse bias across the coil of the relay in other to avoid the resulting back-emf that appears across the coil of the relay when its turned off from damaging the digital device or transistor.

Specifications:

• Product Name : Power Relay

• Model : SRU-09VDC-SL-C

• Mounting Form : PCB

• Voltage: DC 9V

• Voltage: 250VAC (10A), 30VDC (10A)

• Current: 10A

• Pin Number : 5

• Contact : SPDT

• Size (Approx.) : 19x15x15mm

• Main Color : Blue;

• Main Material : Plastic, Metal

• Weight : 9g

Features:

• Switching capacity available by 10A in spite of small size design for high density P.C. board mounting technique.

• UL,CUL,TUV recognized.

• Selection of plastic material for high temperature and better chemical solution performance.

• Sealed types available.

• Simple relay magnetic circuit to meet low cost of mass production.

• Songle power relays with a coil rated voltage of 9V DC and SPDT contacts with a 10A rating.

• The relays have 5 pins and are very good quality with a long operational life. Compact and sealed construction.

• It is especially suitable for harsh environments such as corrosion, humidity, dust, explosion protection, and frequent switching.

• It can control small motors, incandescent lamps, indicator lights, low-power power supplies, intelligent instrumentation and various solenoid valves, etc. It can also be used as a pusher for high-power electromagnetic contactors.

• Widely used in the field of petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities, etc.

Application:

• Domestic appliance, office machine, audio, equipment, automobile, etc.( Remote control TV receiver, monitor display, audio equipment high rushing current use application.)

Package Include:

• 1 x Relay SONGLE 9V 10A
