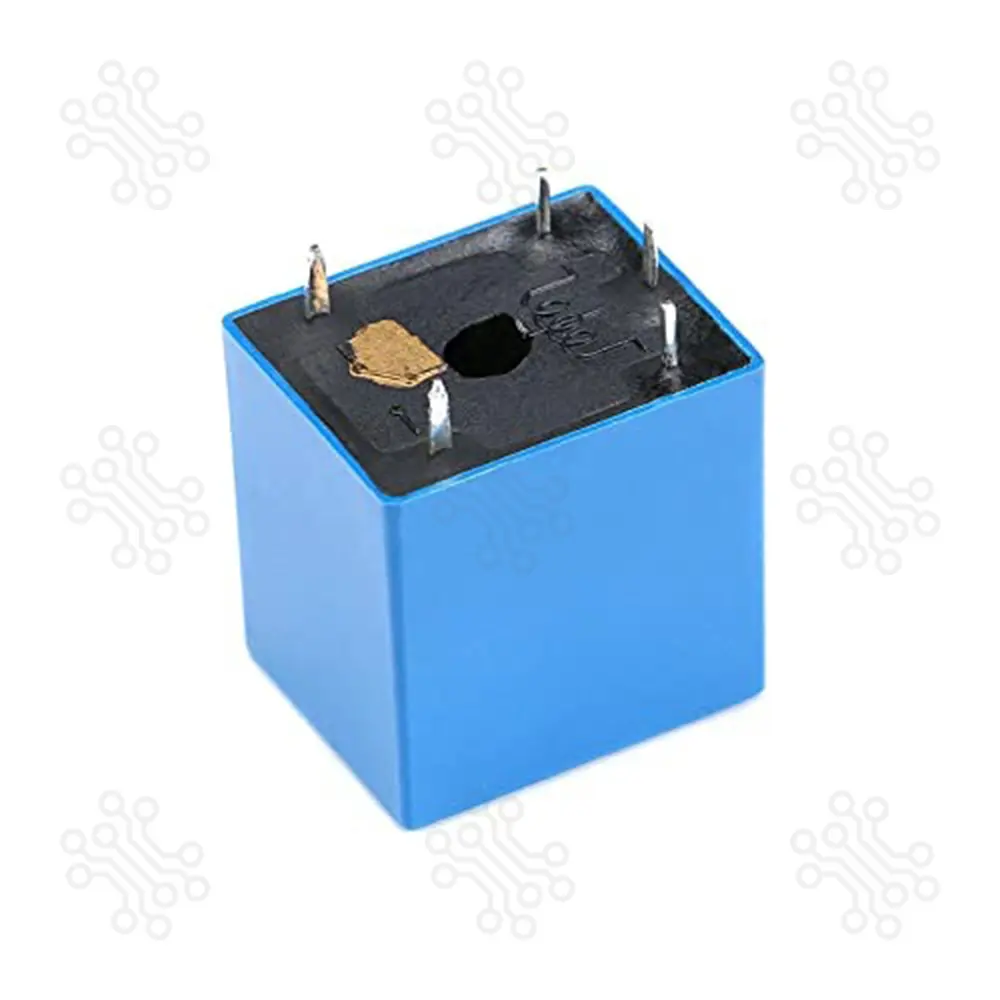

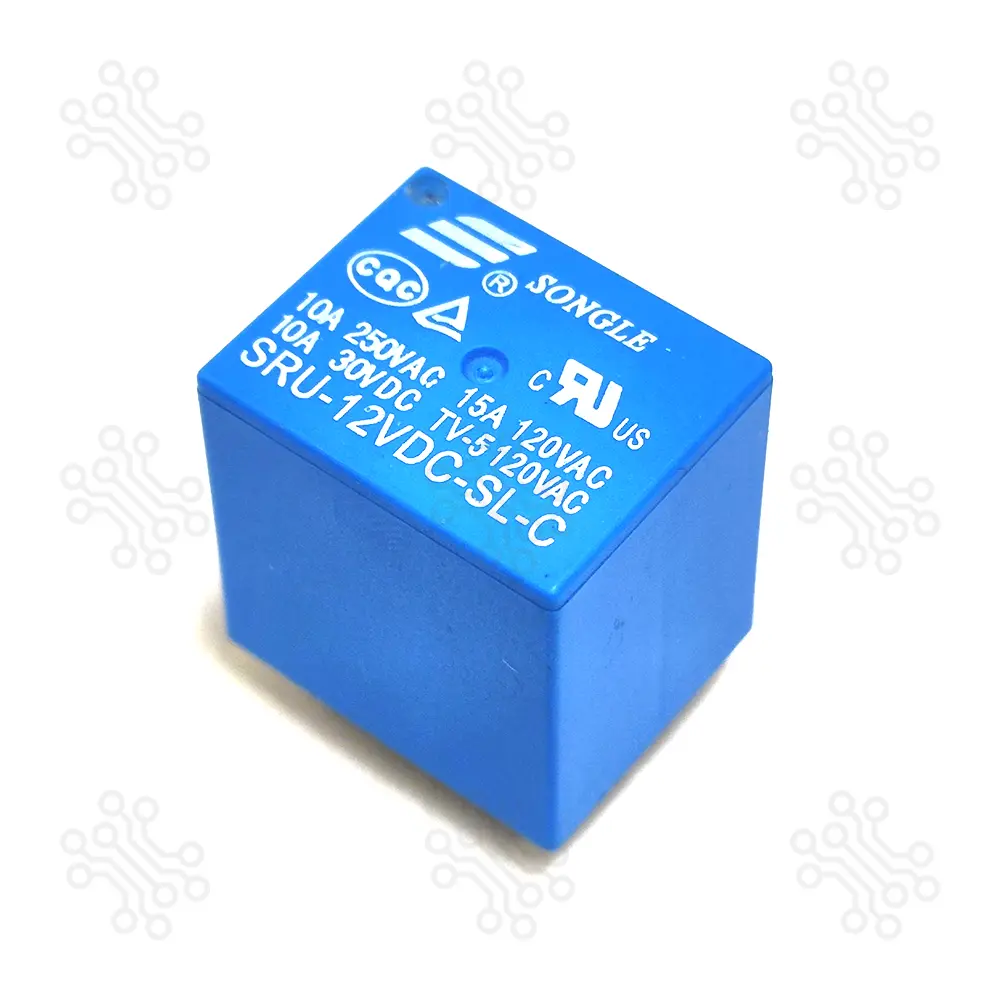

Relay SONGLE 5 Pin 12V 10A

Description of Relay SONGLE 5 Pin 12V 10A

The Relay SONGLE 5 Pin 12V 10A is a 12V DC coil electromagnetic power relay designed for switching high-current electrical loads. It supports up to 10A at 250VAC, 15A at 120VAC, and 10A at 30VDC, making it suitable for both AC and DC applications.

Featuring an SPDT configuration, it supports both Normally Open (NO) and Normally Closed (NC) contacts for flexible switching. This relay is commonly used in home appliances, industrial control systems, automation equipment, and embedded projects where reliable high-power switching is required using a low-voltage control signal.

Key Feature

• Switching capacity available by 10A in spite of small size design for highdensity P.C. board mounting technique.

• UL,CUL,TUV recognized.

• Selection of plastic material for high temperature and better chemical solution performance.

• Sealed types available.

• Simple relay magnetic circuit to meet low cost of mass production.

Specification

Applications

• Home automation systems

• Industrial control panels

• Arduino and microcontroller projects

• Power switching circuits

• Motor and light control systems

• IoT-based smart devices

Documents

• Datasheet

Package Content

• 1 × Relay SONGLE 5 Pin 12V 10A
