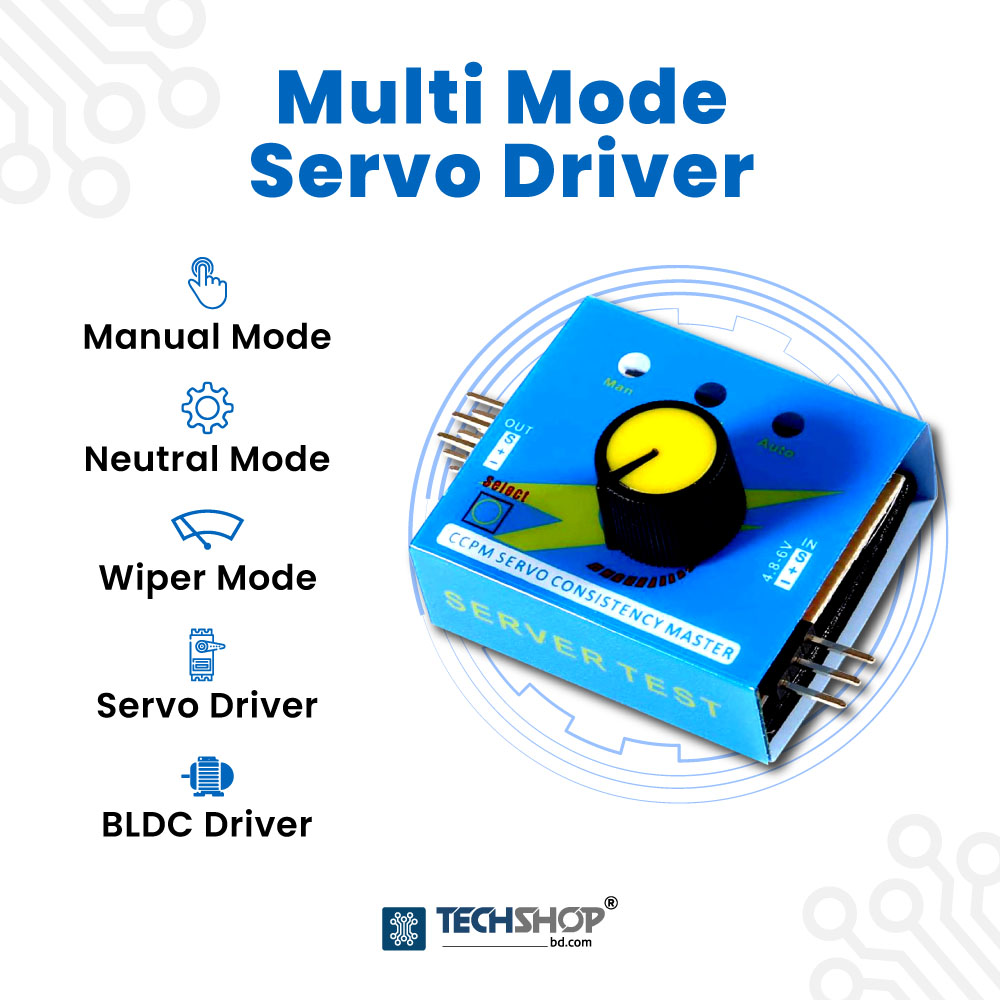

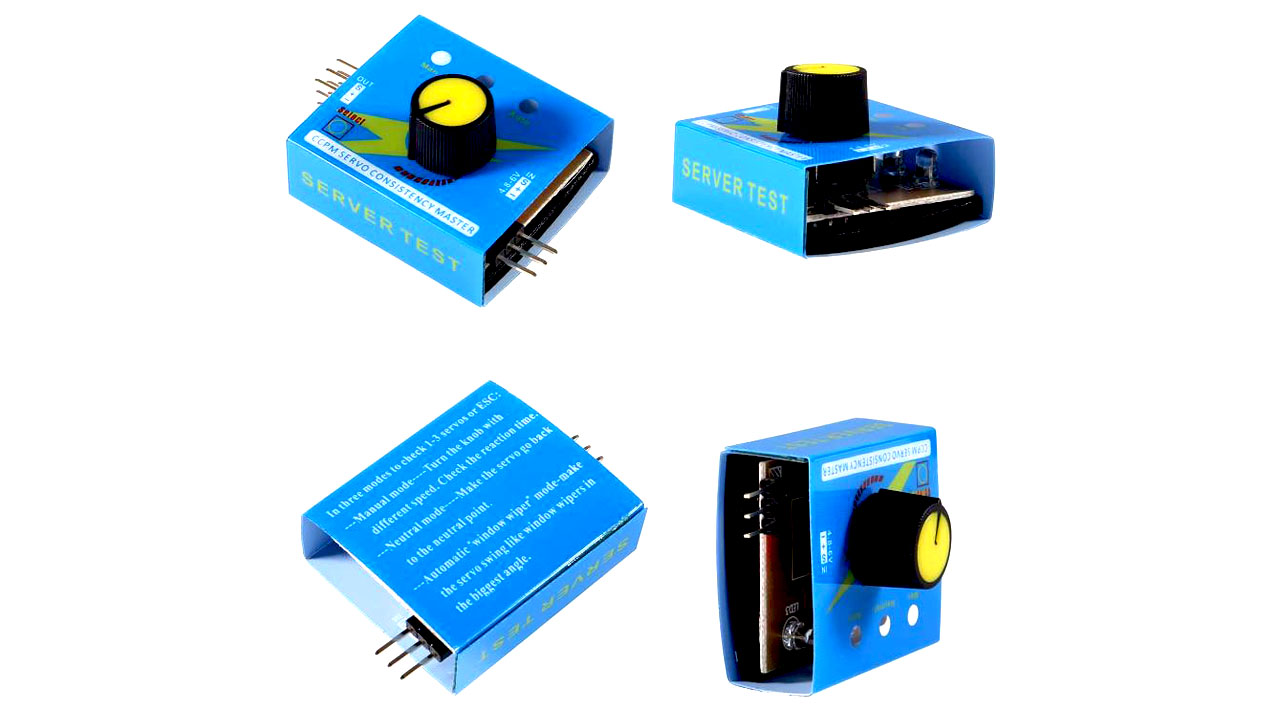

Multi Servo Tester PWM Motor Driver
Driver/tester module for servo motor control
৳250.00৳240.00
Description of Multi Servo Tester PWM Motor Driver
Multi Servo Tester PWM Motor Driver
The Multi Servo Tester PWM Motor Driver is a simple yet powerful device designed to test the performance of servo motors, ESCs (Electronic Speed Controllers), and RC components. With three distinct modes—Manual, Neutral, and Automatic—it makes checking the functionality of servos and ESCs quick and easy. This makes it an ideal tool for those working on Robotic arms, RC planes, drones, or similar projects.
The device can also act as a signal generator for ESCs, allowing you to test motor systems without needing a transmitter or receiver. Its compact and lightweight design makes it highly portable, and it can connect up to three servo motors simultaneously, making your tasks faster and more efficient.
If you're into RC vehicles, drones, or robotics, the Multi Servo Tester PWM Motor Driver is a must-have tool! Whether you're a beginner or an expert, this compact and easy-to-use device simplifies testing and calibration of servo motors and ESCs (Electronic Speed Controllers).
The Multi Servo Tester PWM Motor Driver is not just limited to testing servo motors; it can also be used to test Electric Speed Controllers (ESCs) without the need for a transmitter or receiver by acting as a signal generator. Its dual functionality of inspecting both servos and ESCs makes it a perfect choice for RC enthusiasts.
Key Features
Three Operating Modes:
Manual Mode: Adjust servo speed using a knob to test reaction times.
Neutral Mode: Brings the servo back to its neutral position.
Automatic “Window Wiper” Mode: Moves the servo in the widest angle, simulating a window wiper.
Versatile Connectivity: Connects up to three servos at once.
ESC Testing: Functions as a signal generator, eliminating the need for a transmitter and receiver for testing ESCs.
Ideal for RC Applications: Suitable for testing components of RC planes, quadcopters, and other RC vehicles.
Specifications
Parameter | Details |
Voltage Consumption | DC 4.8 – 6V |

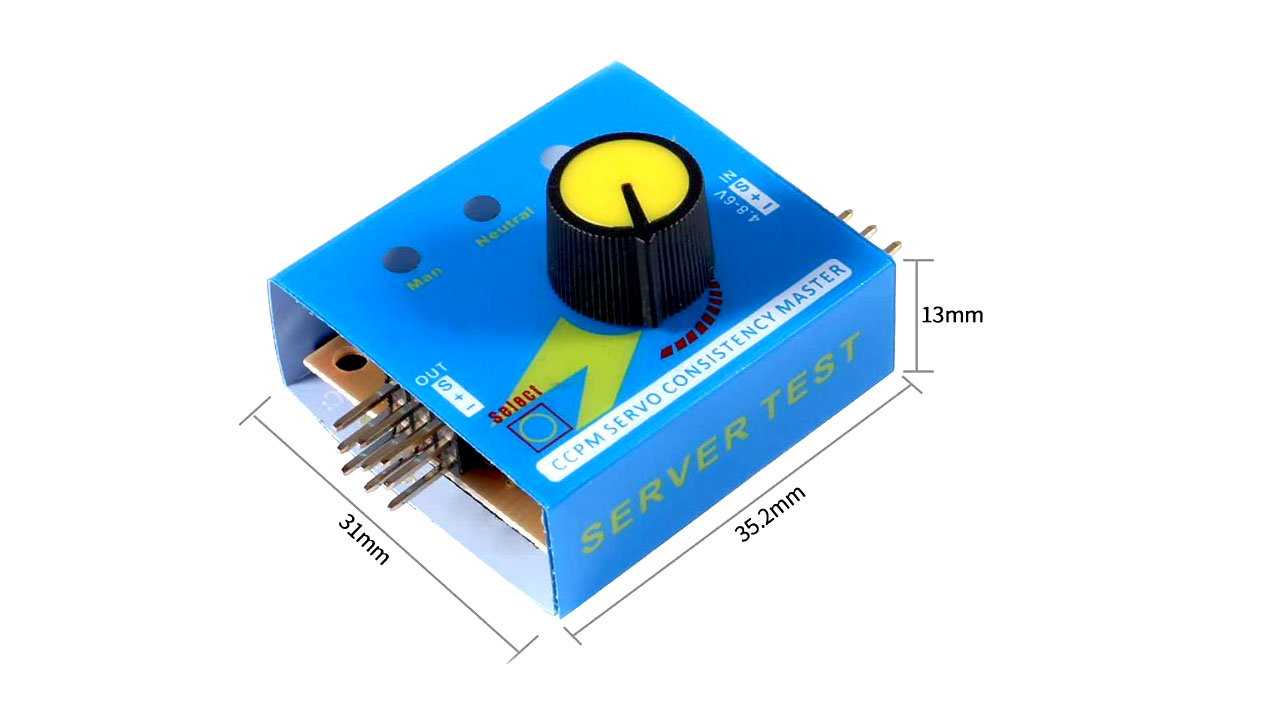

Size | 31 x 35.2 x 13 mm |
Color | Blue |
Net Weight | 7 g |
Package Weight | 13 g |
Packaging Details
1 x Multi Servo Tester PWM Motor Drive
