Motor Driver L293D Dual Channel
Multi-channel DC motor driver module
৳210.00
Motor Driver L293D Dual Channel
Motor Driver L293D Dual Channel
SKU: 250224004688
Brand : Made in China
Warranty : 3 Days
৳ 210.06
Category: Motor Driver
Share:
Additional Information
DescriptionRatings & ReviewsQuestions & Answers
Description of Motor Driver L293D Dual Channel
Motor Driver L293D Dual Channel

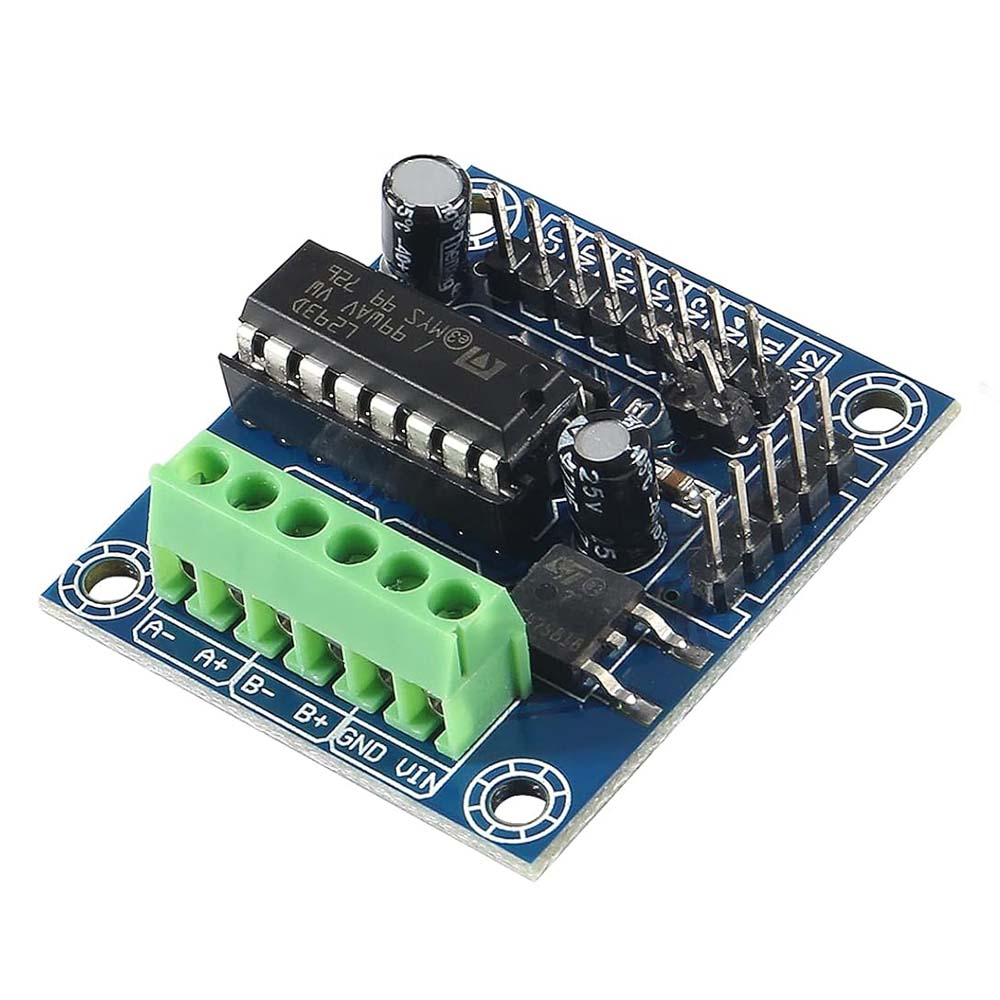

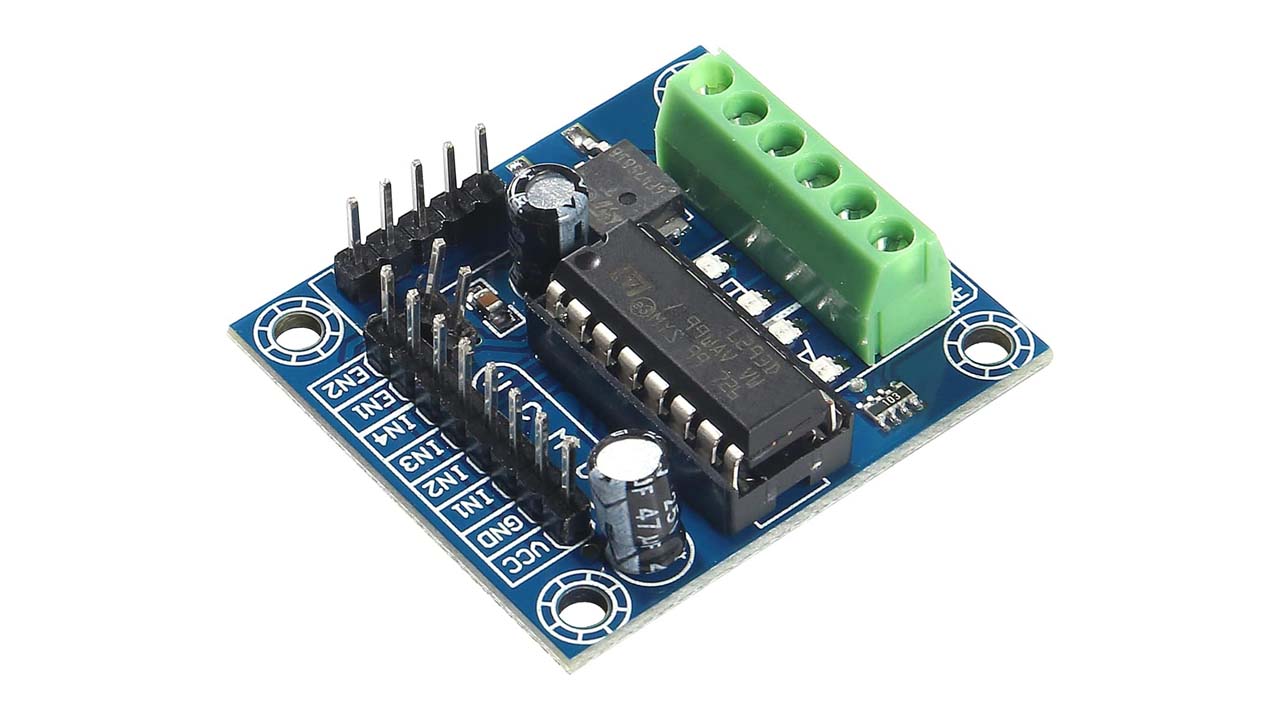

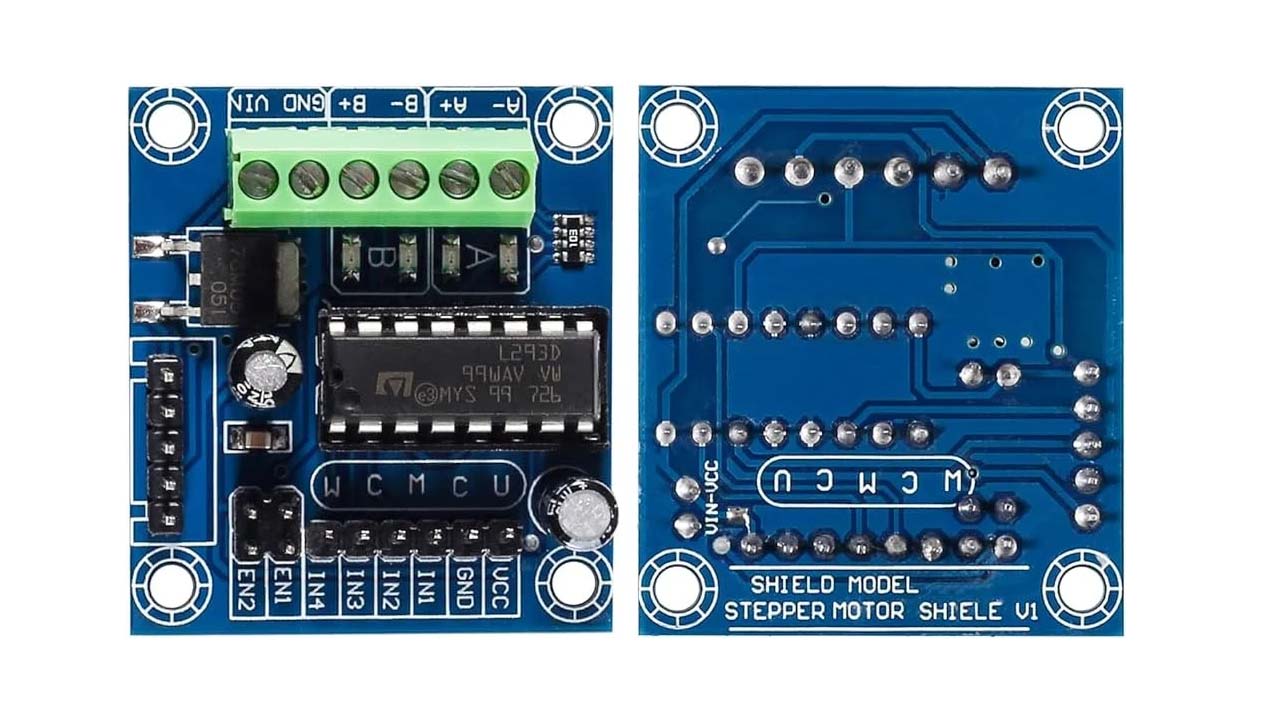

The Motor Driver L293D Dual Channel HW-310 is a compact and high-performance motor control board compatible with popular Arduino platforms such as the UNO and MEGA 2560. Featuring the reliable L293D H-Bridge motor driver IC, this module allows precise control of two DC motors or one stepper motor, with full PWM speed and direction control. Designed for robotics, automation, and motion control applications, it is ideal for students, hobbyists, and engineers building Arduino-based motor-driven projects.
Key Features
Drives two bidirectional DC motors with speed and direction control
Supports one stepper motor in full, half, or microstepping mode
Delivers 600mA continuous and 1.2A peak current per channel
Supports motor voltages from 4.5V to 36V
Onboard thermal shutdown protection for safe operation
Compatible with TTL/DTL logic signals (up to 1.5V logic low)
Built-in clamp diodes for inductive load protection
Includes onboard power indicator LED
Large terminal blocks support 10 to 22 AWG wires for easy connections
Technical Specifications:
Parameter | Specification |
|---|---|
Model | HW-310 |
IC Used | L293D Dual Channel H-Bridge |
Motor Support | 2 DC motors, 1 stepper motor |
Output Current | 600mA per channel (1.2A peak) |
Voltage Range | 4.5V to 36V (motor) |
Logic Voltage | 5V (TTL/DTL compatible) |
Protection | Thermal shutdown, clamp diodes |
Board Dimensions | 39 x 35 x 12 mm |
Compatibility | Arduino UNO, MEGA, Diecimila, Duemilanove |
Applications
Arduino-based robotics projects
DC and stepper motor-based automation systems
Smart car or vehicle kits
Motorized IoT and home automation projects
STEM education and beginner electronics learning kits
Packaging Details
1 X Motor Driver L293D Dual Channel
Why Choose This Motor Driver L293D Dual Channel?
This motor driver offers dual motor control in a compact, easy-to-integrate design with built-in thermal and electrical protection to ensure long-term reliability. It is ideal for both educational use and prototype development, fully compatible with popular Arduino boards, and supports simple wiring and installation thanks to clearly labeled terminals.
