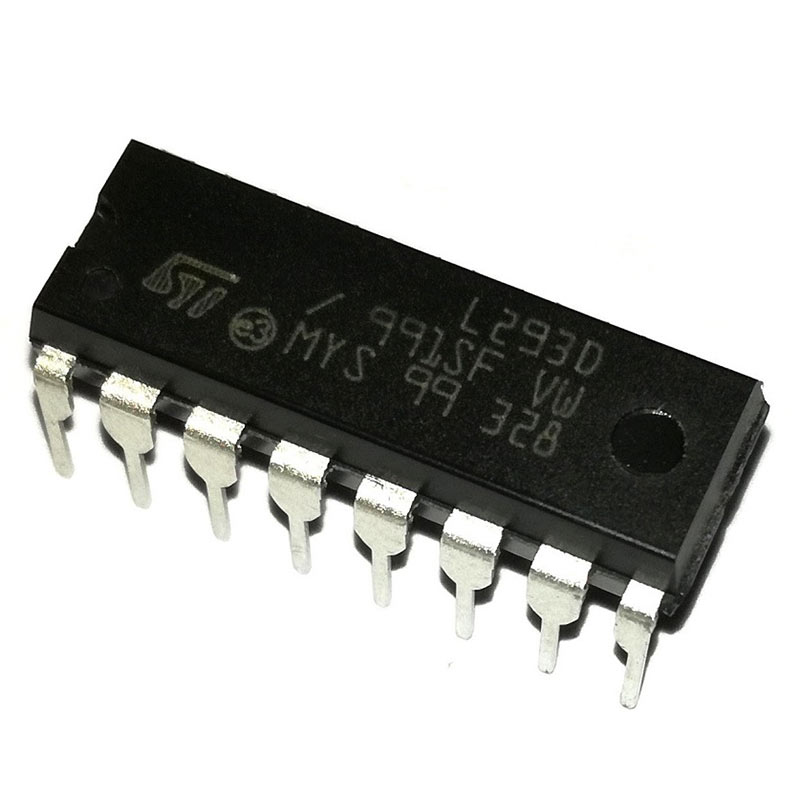

L293D Motor Driver IC

Description of L293D Motor Driver IC

The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors. To simplify use as two bridges each pair of channels is equipped with an enable input.

A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.

Applications: This device is suitable for use in switching applications at frequencies up to 5 kHz.

Features:

• 600mA output current capability per channel

• 1.2A peak output current (non repetitive)per channel.

• Enable facility

• Overtemperature protection

• Logical ”0” input voltage up to 1.5 v (high noise immunity)

• Internal clamp diodes.

Specification of L293D Motor Driver IC

• Maximum Supply Voltage 36 V

• Maximum Logic Supply Voltage 36 V

• Maximum Input Voltage 7 V

• Maximum Enable Voltage 7 V

• Peak Output Current (100 ms non repetitive) 1.2 A

• Total Power Dissipation at Tpins = 90 °C 4 W

• Storage and Junction Temperature – 40 to 150 °C
