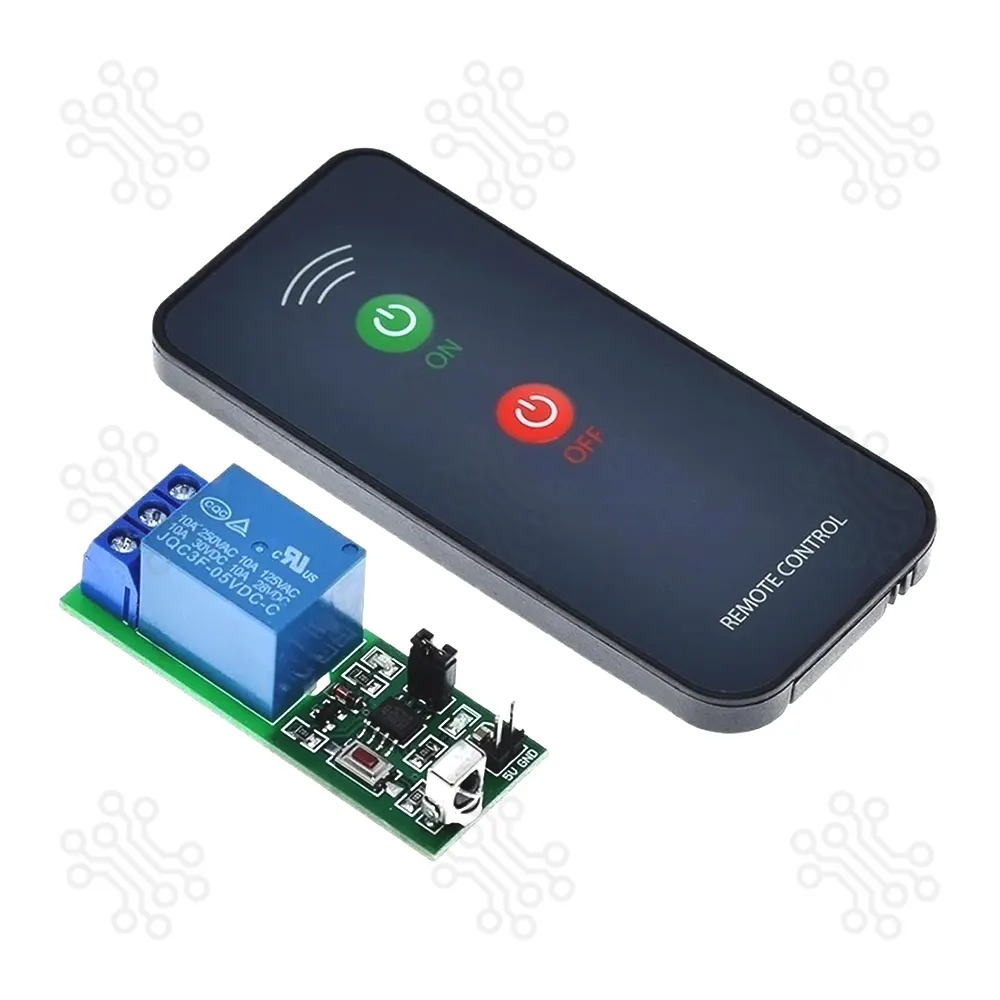

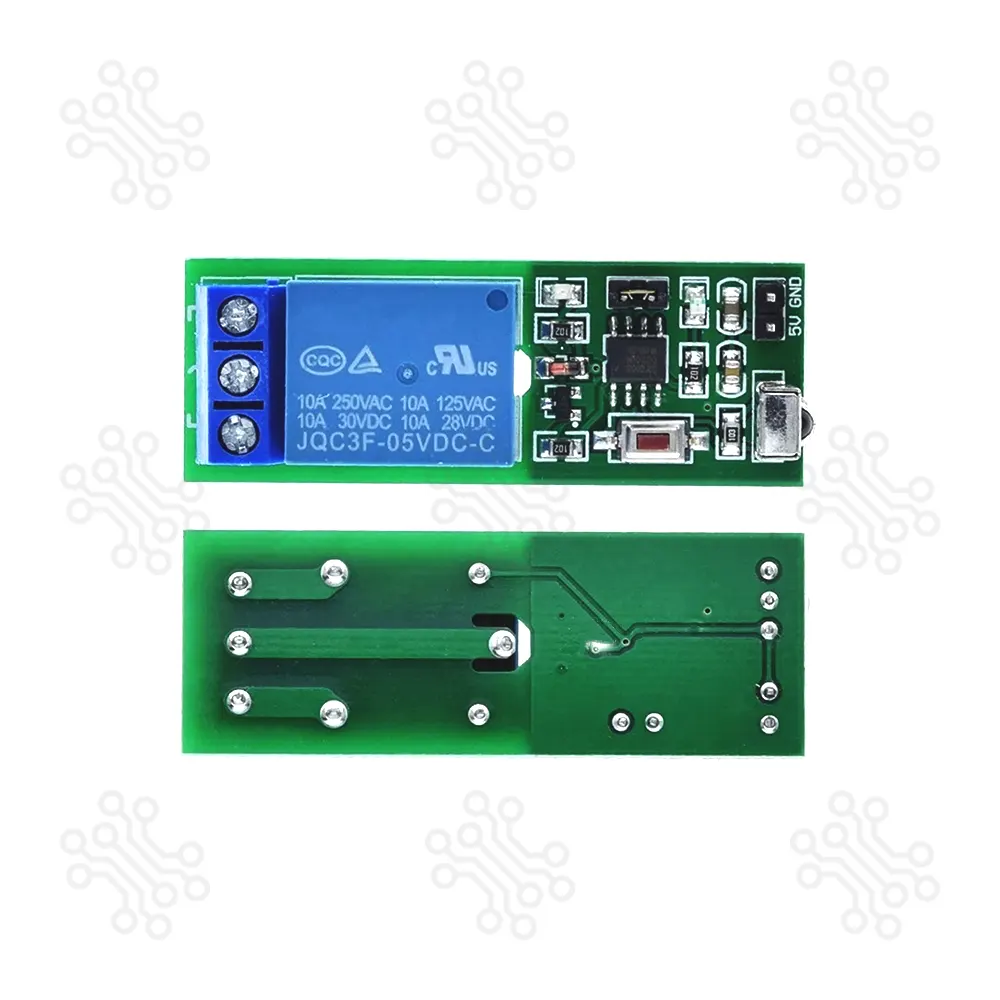

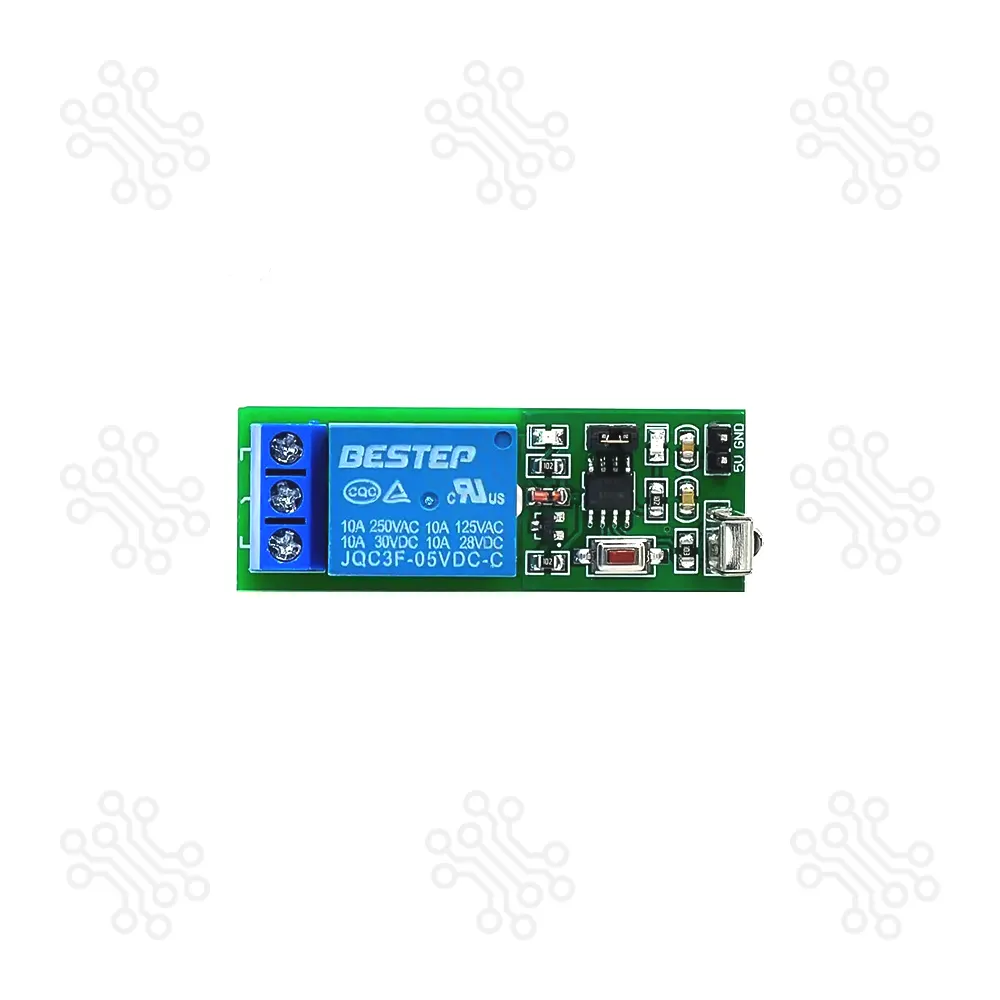

Infrared Receiver 1 Channel Relay Driver
Electromechanical relay for switching circuits
৳500.00৳480.00
Description of Infrared Receiver 1 Channel Relay Driver
The Infrared Remote Control Relay Module is designed for reliable 5V DC operation for both power input and relay output. It supports both manual and remote control, featuring an onboard S1 push-button, LED indicators, and an infrared remote learning function. The module allows single-button remote assignment and provides configurable relay behavior through an optional Computer Jumper.
Key Features
Power and relay status LED indicators
Onboard S1 push button for manual ON/OFF switching
Isolated circuit design for safe input/output separation
Infrared Remote Control
Powered by CR2025 battery (included)
Control distance: 8–12 meters (environment dependent)
Specification
Parameter | Value |
|---|---|
Operating Voltage (Input) | DC 5V |
Relay Output Voltage | DC 5V |
Control Method | IR Remote & S1 Push Button |
Remote Distance | 8–12 meters |
Relay Output | NO/NC Contacts, Insulated Circuit (5V) |
Module Size | 52.70 × 19.40 × 16.80 mm |
Remote Controller Size | 39.50 × 6.60 × 85.40 mm |
Weight | 28.70 g |
Battery | CR2025 (included) |
Relay Toggle Behavior | With Jumper: ON/OFF twice per press; Without Jumper: ON/OFF per press |
Remote Binding | Assign a single button; press both buttons to clear the assignment. |
Module Operation
Power on: Power LED remains steadily on.
Press S1 once: Power LED blinks, and the module enters remote learning mode.
Press a remote button: assigns that button to the module.
Press both remote buttons simultaneously: clears the remote assignment.
Press the assigned remote button:
With the Computer Jumper connected, the relay and LED toggle ON/OFF twice per press.
Without the Computer Jumper: the relay and LED toggle ON/OFF once per press.
Only one remote button can be assigned to the module at a time.
Note: The module can only be used with one button at a time.
Applications
Smart home automation
Remote-controlled lighting and appliances
DIY electronics projects
Learning-based IR control experiments
Automation systems requiring relay switching
Packaging Details
1 × Infrared Receiver 1 Channel Relay Drive
1 × IR Remote
