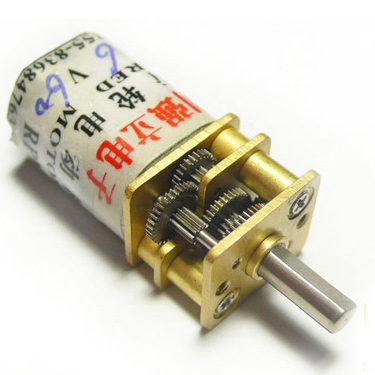

Gear reduction motor p12 6V 60RPM

Description of Gear reduction motor p12 6V 60RPM

Gear (reduction ) motor from Seeedstudio. These are pretty good quality, run at  60rpm speed. All you need to do is connect the postive and  negative pole-pin.

To know more about this product,please click this link.

Specification of Gear reduction motor p12 6V 60RPM

• Operating Voltage: DC 2.4 ~ 6.0V

• Shaft Diameter: 3mm

• No Load Speed: 55 ~ 70rmp

• No Load Current: 30 ~ 70mA

• Max. Efficiency Speed: 40 ~ 52rpm

• Max. Efficiency Current: 350 ~ 450mA

• Torque: 0.7 ~ 1.2 kg/cm

• Stall Current: 500 ~ 700mA

• Stall Torque: 3.0 ~ 4.0 kg/cm
