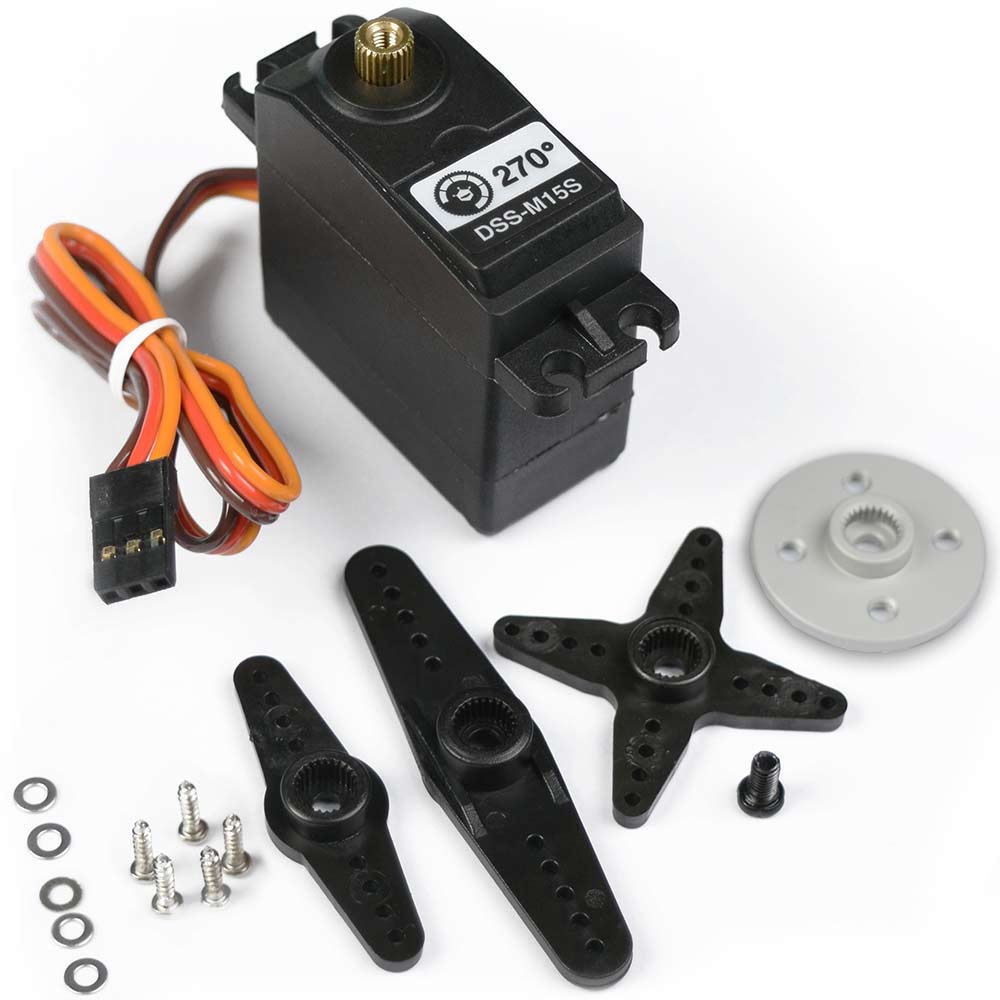

Digital Servo Motor DSS-M15S
High Precision 270° Servo for Robotics
৳2250.00
Description of DF Metal Geared 15Kg Standard Servo 270 Degree DSS M15S
DSS-M15S is a heavy-duty metal gear standard servo with 270°wide angle, high torque power, improved stability and durability.
Able to take in 6V and deliver a strong torque power of over 15Kg, this tough 270°servo will never let you down when you need it. Tested with high load capacity for 12 hours long, this DSS-M15S servo demonstrates a maximum torque of 18Kg without much vibration or heat.
In addition, we enclose carefully selected steering parts, including an aluminum alloy wheel and a long bracket, to enhance servo performance.
Click here to know more about this product.
Specification of DF Metal Geared 15Kg Standard Servo 270 Degree DSS M15S
Voltage: 4.8-7.2 Volts
Torque: 13.5Kg*cm/15Kg*cm (6.0V/7.0V)
Speed: 0.18 sec/60°/0.16 sec/60° (6.0V/7.0V)
Free Run Current: 80mA/100mA (6.0V/7.0V)
Stall Current: 1.8A/2A (6.0V/7.0V)
Standby Current: 4mA/5mA (6.0V/7.0V)
Rotation: 270°
Wheel Gear: Metal
Gear Ratio: 310:1
Dimension: 54.5*20*47.5mm
Signal: RC PWM
Pulse Range: 500-2500 us
Frequency: 50-330Hz（Arduion-compatible）
