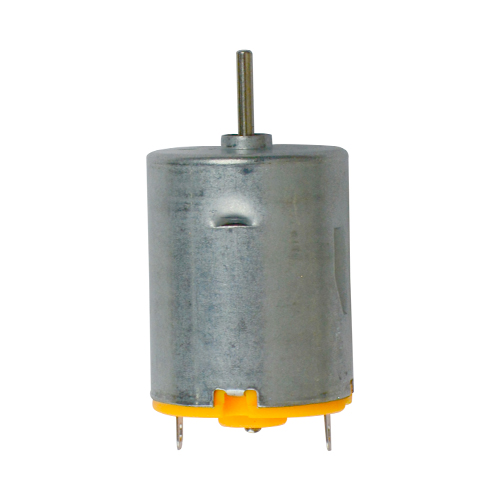

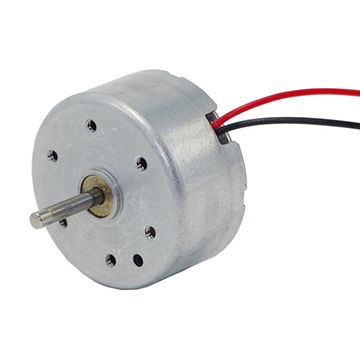

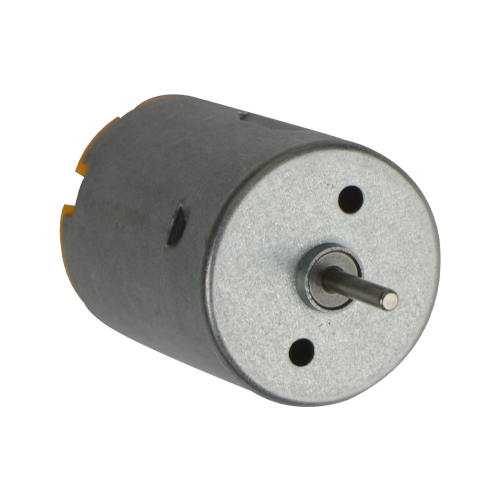

DC Motor 6v, 9v, 12v

Description of DC Motor 6V

Diameter of the motor: 23.5mm
height: 30mm
shaft diameter: 1.8mm
shaft length: 9.5mm
start the voltage 0.8V
Rated voltage: 6V,
non-charging current: 25mA,
speed: 2980 RPM

Specification of DC Motor 9V

• Rated Voltage:9V DC

• Supply Voltage Range:6-11V

• Current (Amps): 0.092

• Rated Speed (RPM): 2400

• Torque (g-cm):8

• Shaft Diameter: 0.079"

• Rotation:CCW

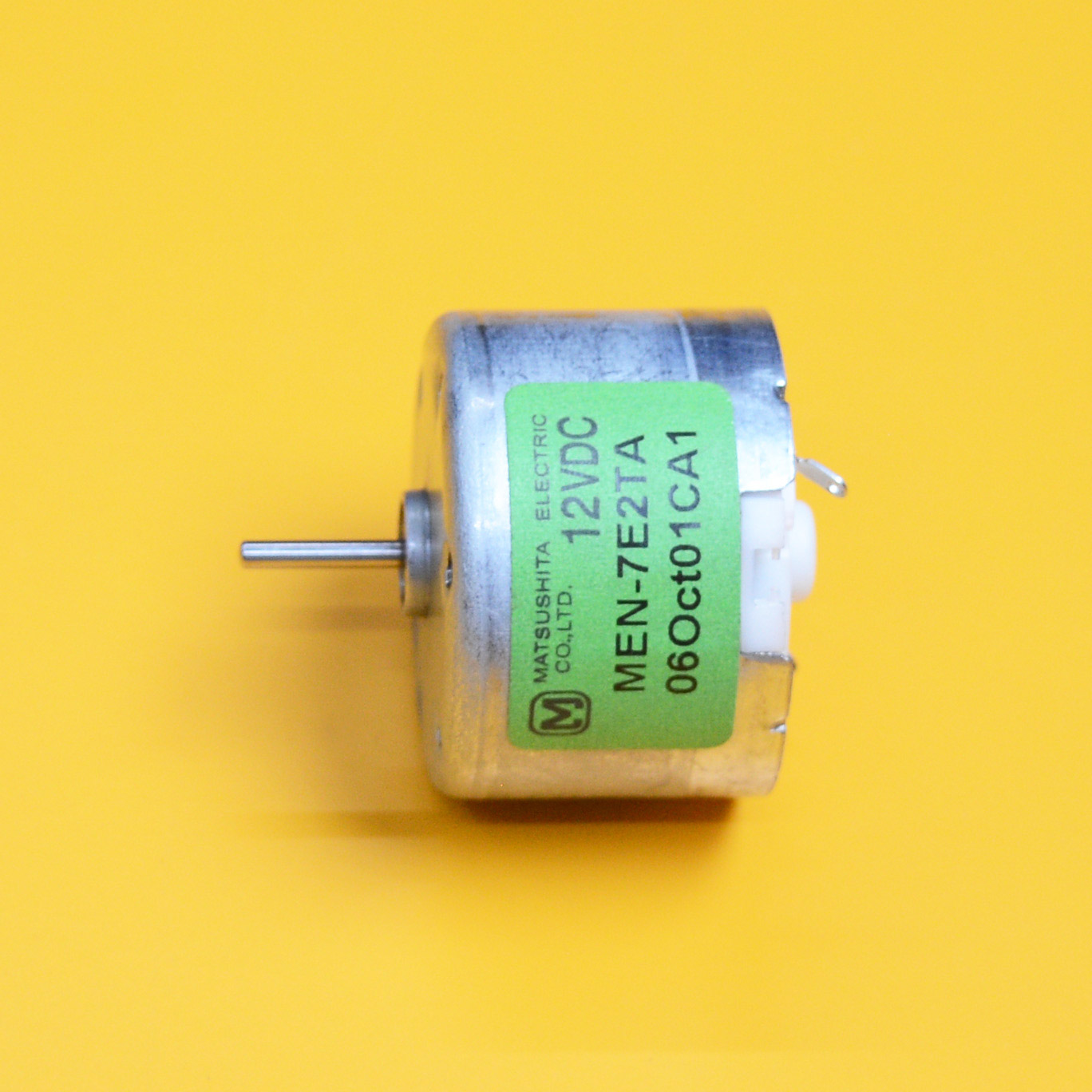

Specification of DC Motor 12V

• Rated Voltage:12 V

• RPM:2400

• Rotation:CW
