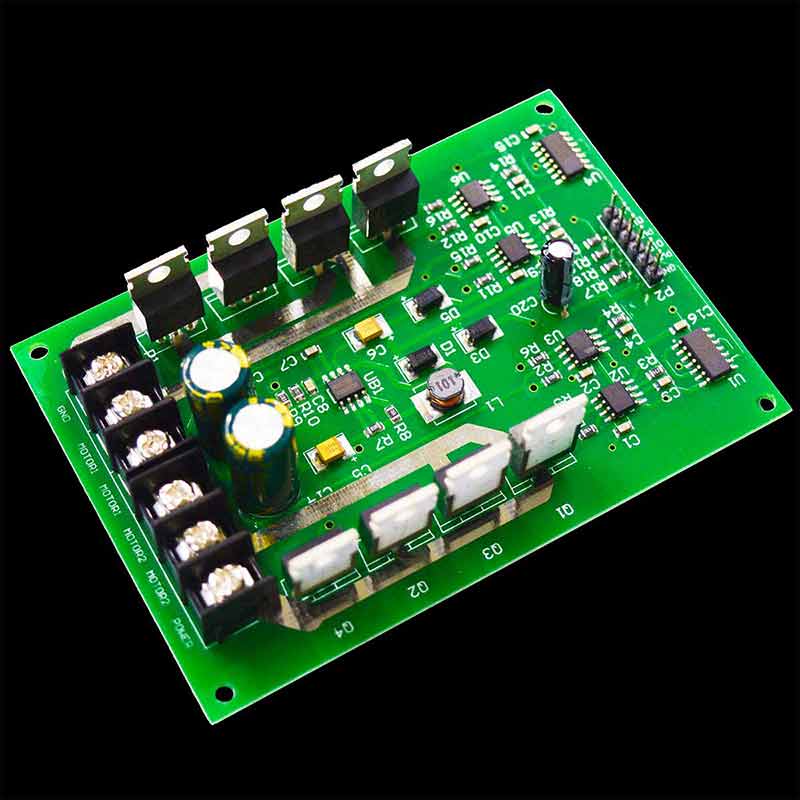

DC 3V to 36V 15A Dual H Bridge DC Motor Driver

Description of DC 3V to 36V 15A Dual H Bridge DC Motor Driver

This Dual Dc motor driver focuses on high efficiency and can withstand high current load, the maximum current up to 30A.

The driver can operate at 0% -99% of the duty cycle of the PWM modulation.

It uses N-channel MOSFET IRF3205 MOSFET to form 2 full H bridge to control 2 DC motors simultaneously which improve motor acceleration curvature, but also fast motor brake.

Operation:

Motor forward: DIR = 1,  PWM = PWM signal

Motor reversal: DIR = 0,  PWM = PWM signal

Brake: DIR = X (1 or 0),  PWM = 0

Applications:

Driving high current brushed dc motors, battle robot, soccer robot and similar.

Specification of DC 3V to 36V 15A Dual H Bridge DC Motor Driver

Compatible Motors: Brushed DC motors only

Rated Motor voltage: 3v-36v

Rated Motor Current: 15A (per channel)

Peak Motor current: 30A (per channel)

Logic Voltage: 5V

Dimensions: 108mm X 58mm (l X b)
