BLDC Motor DC Brushless 1400KV

Description of BLDC Motor DC Brushless 1400KV

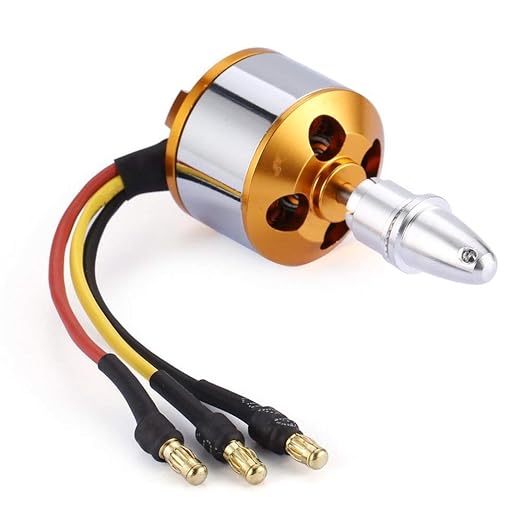

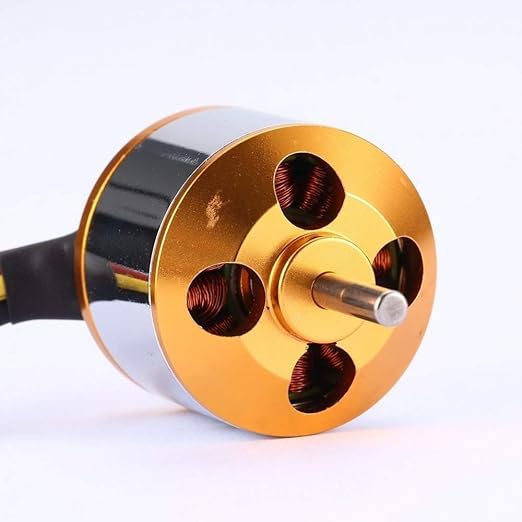

The A2212 10T 13T 1400Kv Brushless Motors for Drone are best compatible or used with Simonk 30A ESC and 1045 Propeller Set. This 1400kv brushless motor is equipped with the solid metal case which makes it reliable and durable. This A2212 10T or 13T Motor comes with good quality connector for a fast and direct connection between ESC and the motor.

Specification:

Model: xxd A2212
kv/V : 1400kv
Improving efficiency max .: 80%
efficiency power max .: 10-15a (> 75%)
Current capacity: 18a / 60s
no load current @ 10v: 0.5a
no. Cell: 2-3 lithium poly
engine size: Φ27.8 x 23mm
shaft diameter: Φ3.17mm
Weight: 55g

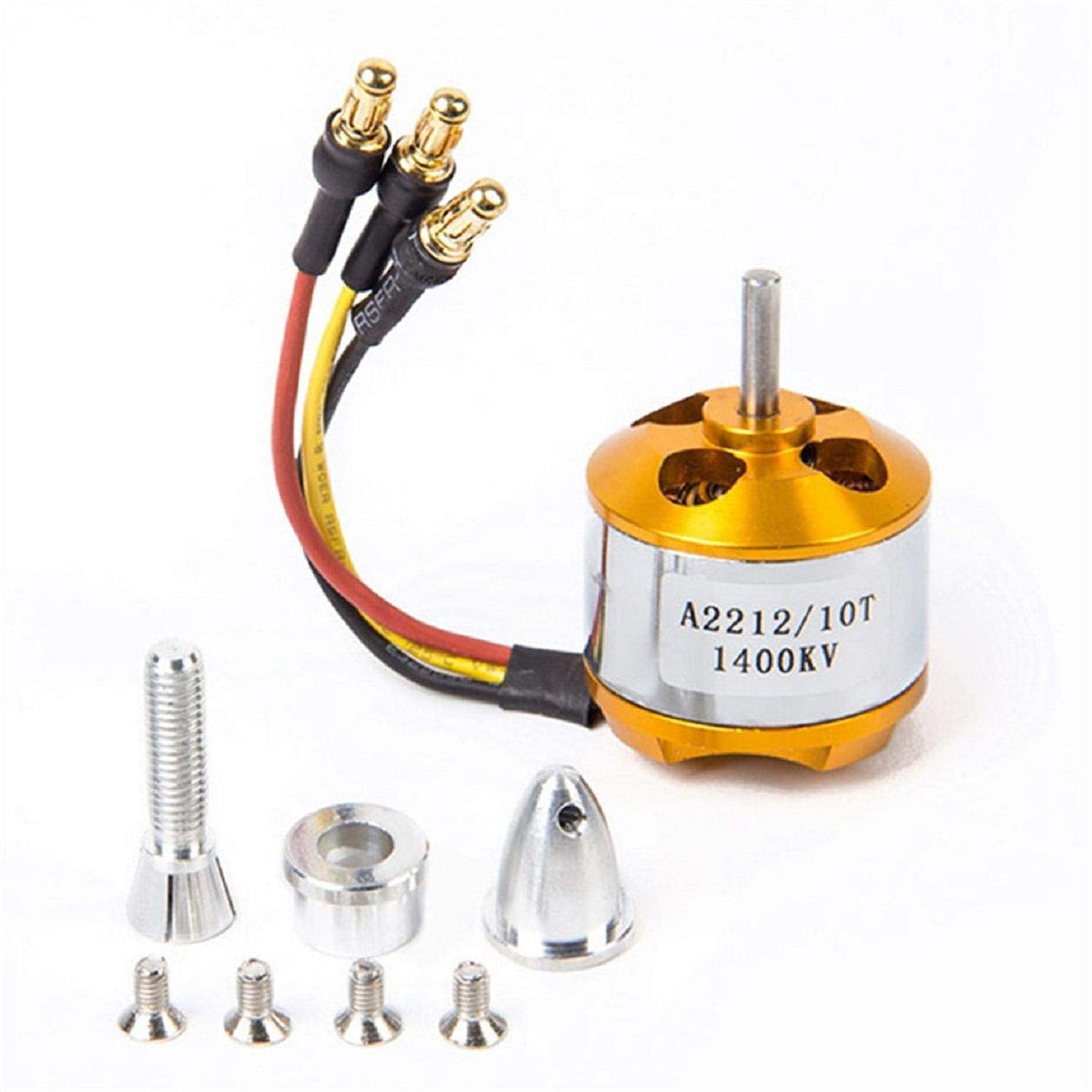

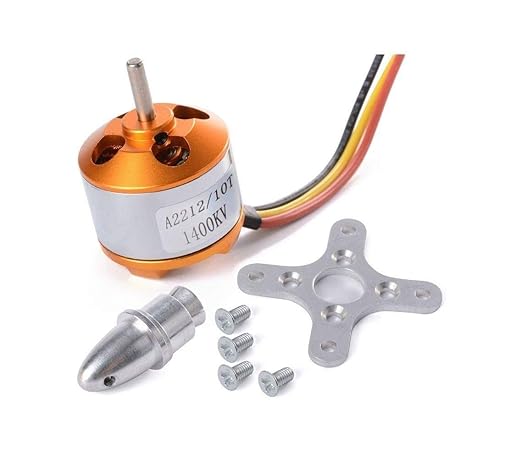

Package contents:


1 x A2212/10t 1400kv outrunner brushless motor
1 x motor mount
1 x propeller adapter holder
1 x screws

Documentation of BLDC Motor DC Brushless 1400KV

• Understanding KV in BLDC Motors
