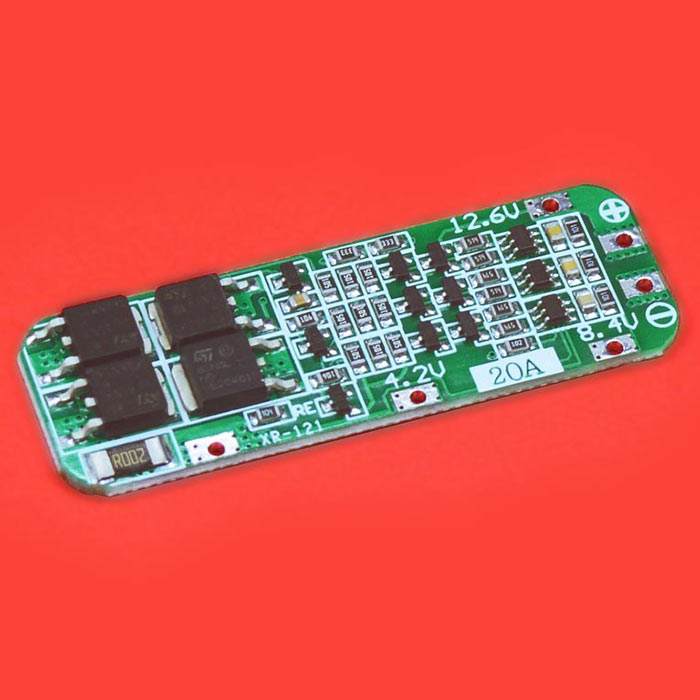

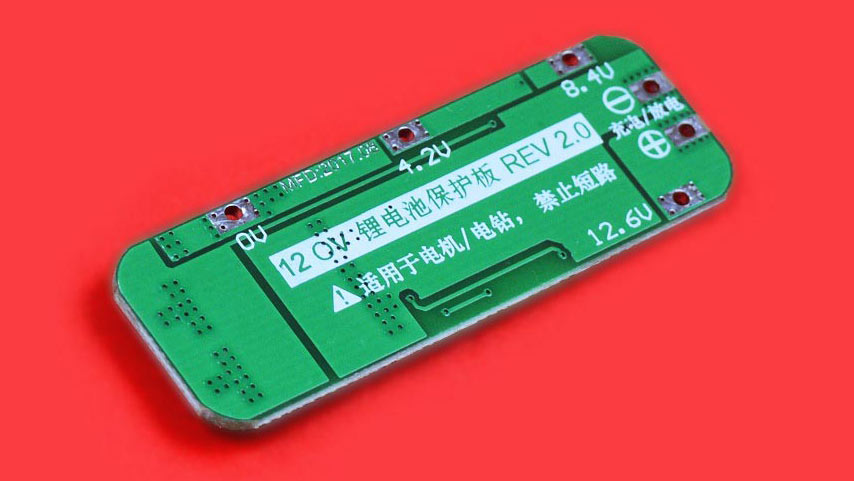

2S Lithium Ion BMS Board (Round Shape)

Description of 3S Lithium ion BMS Board

Lithium batteries is now very popular of their superior performance. But for imbalance charging, over discharging, over charging and short-circuit may damage the battery performance. To optimize the battery performance, maximize lifetime and ensuring safe operation is mandatory. Only a well-designed Battery Management System (BMS) can protects and monitors a lithium battery during charging and discharging.

Feature:

• Over and Under Voltage Protection

• Overcurrent and Short-Circuit Protection

• Balance Charging

Specification of 3S Lithium ion BMS Board

• Self-consumption current: 12uA to 24uA

• Overcharge protection voltage: 4.2V to 4.3V

• Overcharge recovery voltage: 4.1V to 4.3V

• Over discharge protection voltage: 2.8V to 3.2V

• Over release protection votlage: 2.4V to 2.6V

• Over discharge recovery voltage: 2.9V to 3.3V

• Over current protection current: 56A to 64A

• Over current delay time: 100ms to 200ms

• Continuous operating current: 0A to 20A

• Ambient temperature: -40 to 85 degree centigrade
