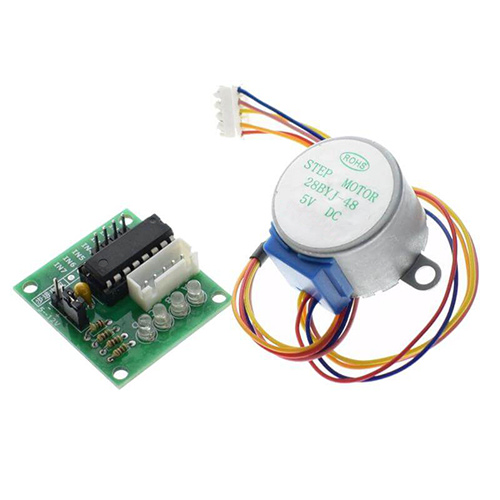

28BYJ-48 Stepper Motor with ULN2003 Driver

Description of Stepper Motor with Driver 28BYJ 48 5V

The 28BYJ-48 is a small stepper motor suitable for a large range of applications.

Specification of Stepper Motor with Driver 28BYJ 48 5V

Specifications:

• Rated Voltage: 5V DC

• Number of Phase: 4

• Speed Variation Ratio: 1/64

• Stride Angle: 5.625 degree / 64

Specifications (TeshShopBD RnD):

• Rated Voltage: 5V DC

• Shaft Diameter: 5mm

• Body Diameter: 28mm

• Body Height: 29mm (with shaft)

• Wire Length: 254mm

• Stall Current: 300mA (with no load)

• Constant Current: 350mA (with no load)

Documentation of Stepper Motor with Driver 28BYJ 48 5V

• Datasheet
